Backdoor



Opening the rear doors and rear window
To unlock the rear doors and rear window, press

Key unlock the rear door, driver's door

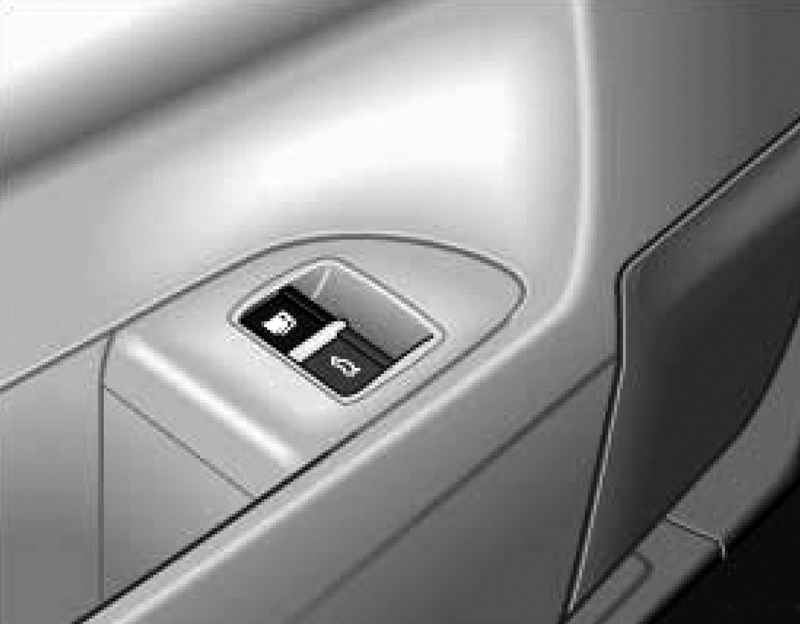

Fig. 1.17. Key unlock the rear door, driver's door

remote control key or pull the key in the driver's door (Fig. 1.17). The back door will be unlocked.

Opening the back door A and rear window in

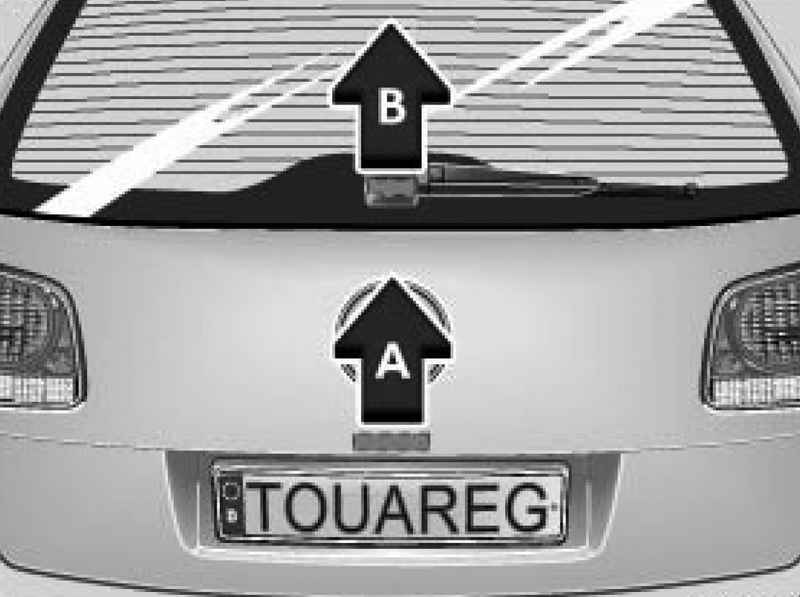

Fig. 1.18. Opening the back door A and rear window in


To open the tailgate, lift the tailgate handle (Fig. 1.18).
To open the rear window at the bottom, hold the location of the nozzle wiper podozhmite key B and raise the rear window.
If the tailgate or rear window open or not fully closed, it will be shown on the display of the instrument panel. If the tailgate is open, at a rate of more than 6 km / h further alarm sounds.

ATTENTION
If in exceptional circumstances it is necessary to move from the open back door or an open rear window, follow the instructions below to reduce the ingress into the vehicle exhaust gases:
- Open all the windows;
- Turn off the recirculation mode;
- Turn the fan on a higher level.

Closing the back door
When closing the tailgate, hold the recess in the inner rear door trim.
If the back door is not fully closed, it will be indicated on the instrument panel. On cars with elektrodovodchikom tailgate will be enough to pin a little back door. Then it automatically closes completely.

ATTENTION
Do not completely closed the back door is a significant danger.
Make sure that the rear door is securely locked after closing. Otherwise, it may suddenly open when driving.
Do not allow children to play in and around the car. In a closed car depending on the time of year can be either very hot or very cold, which could lead to a serious deterioration of the children, or even death. When leaving the car, closed and locked all the doors, including the back door.
