Removing trapeze wiper rods and wiper motor V

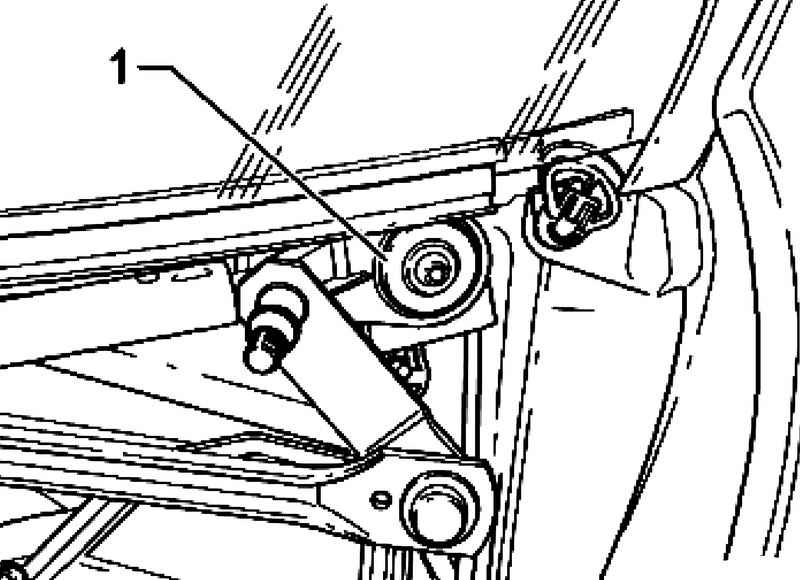

Bolt and washer
Fig. 7.82. Bolt and washer


Remove the bolt with hexagon socket M6 1 and remove the washer (Fig. 7.82).

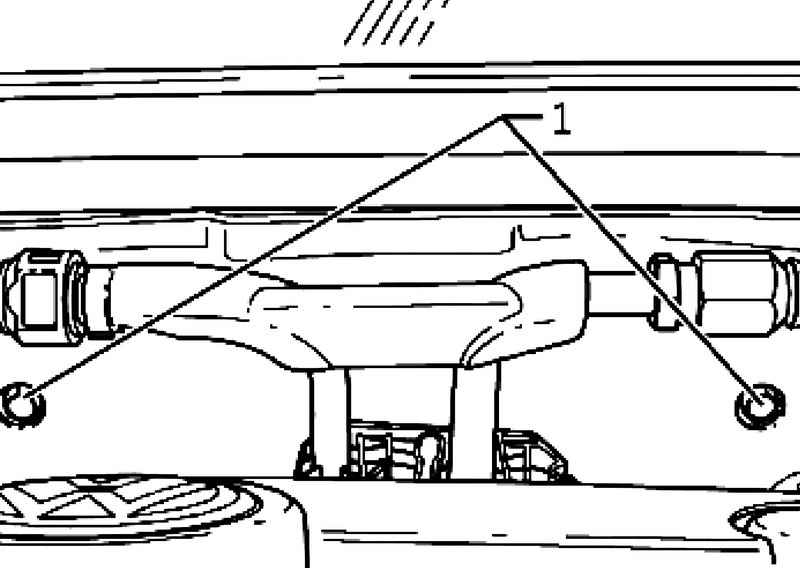

Hex Bolts
Fig. 7.83. Hex Bolts


Remove the hex bolts 1 (fig. 7.83).

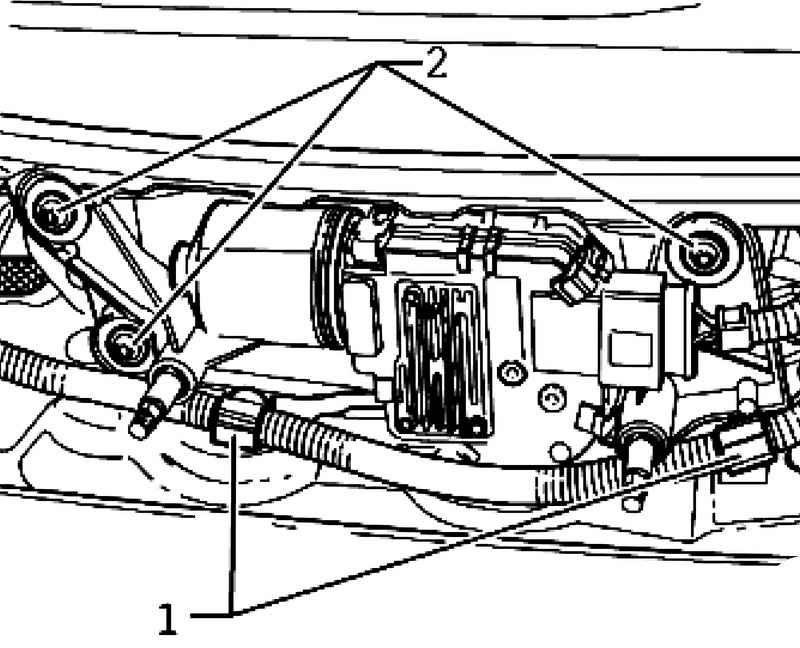

Holders
Fig. 7.84. Holders


Unlock the cable holder 1 of trapeze wiper (Fig. 7.84).
Disconnect the plug from the wiper motor V.
Remove the bolt with hexagon socket M6 2 and remove the washers (Fig. 7.83).
Remove the trapeze wiper fully.

NOTE
When replacing the wiper motor control unit or wiper motor is necessary to make the coding control unit wiper.
