Adjusting the headlights



NOTE
The figure shows the left headlight.
If the test headlamp found after installation uneven gaps between the headlight and the body, it is necessary to adjust its position.

Turn the ignition and all electrical consumers and remove ignition key.
Remove the cover of the front bumper

Fixing bolts of the guide profile bumper cover

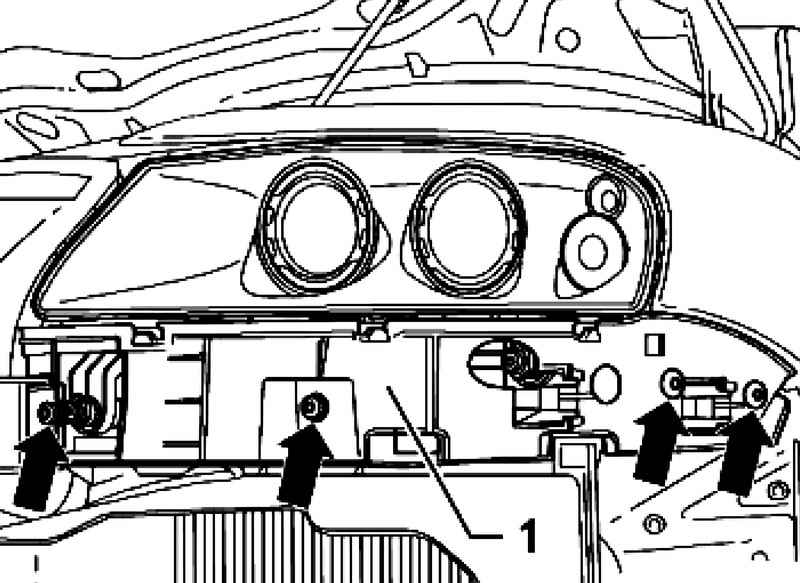

Fig. 7.92. Fixing bolts of the guide profile bumper cover


Remove the fixing bolts guide profile bumper cover 1 (Fig. 7.92).
Remove guide profile bumper cover 1.

The two front mounting bolts

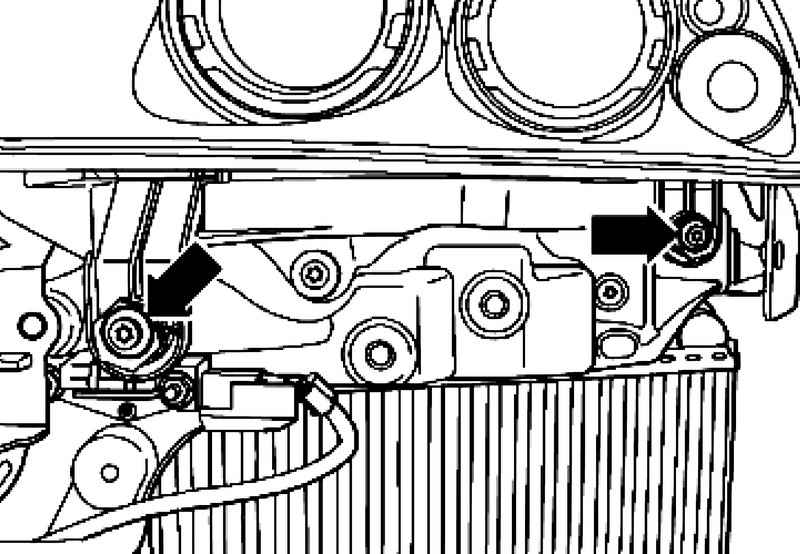

Fig. 7.93. The two front mounting bolts


Loosen the two front mounting bolts enough to mount the headlamp to move freely in the setting sleeve (Fig. 7.93).

Adjusting sleeve

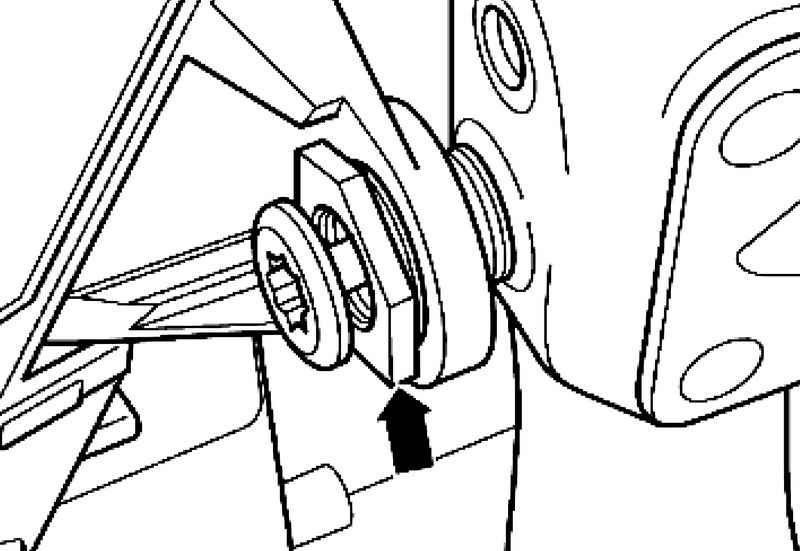

Fig. 7.94. Adjusting sleeve


Adjust the gap by loosening or tightening the adjusting nut (Fig. 7.94).
Tighten bolts the front headlights to the specified torque
Again, check the position of the headlights and, if necessary, adjust the gaps.
Install the guide profile the top panel of the bumper.
Replace the cover of the front bumper
Check the operation of lights, including all of its functions.

NOTE
After installing lights or fit to the body is always necessary to carry out its adjustment.
Check the setting of the headlights, if necessary - adjust
