Removing and installing voltage regulator



NOTE
The voltage regulator can be replaced separately only in cars with 5-cyl. TDI engine

Withdrawal
Remove the three-phase generator.

Fixing the protective cap

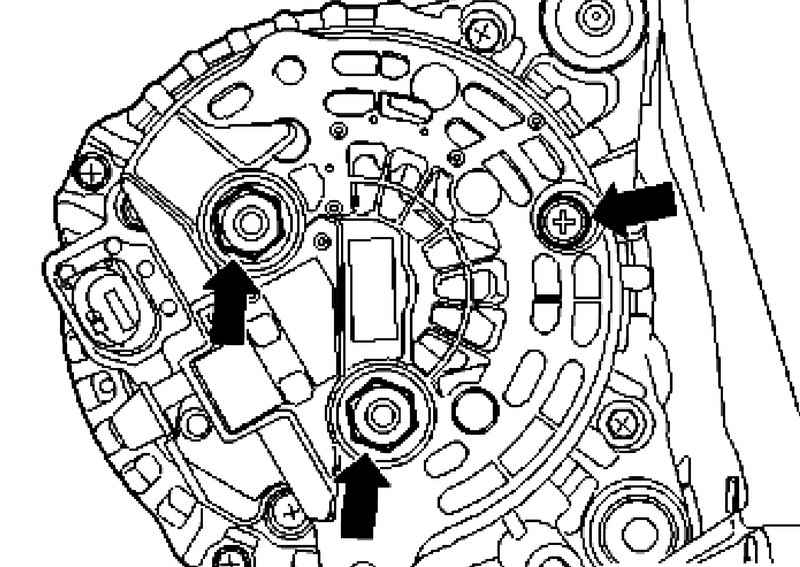

Fig. 7.67. Fixing the protective cap


Turn off fixing bolts and nuts and remove the protective cover from the generator (Fig. 7.67).

Fixing bolts of the voltage regulator

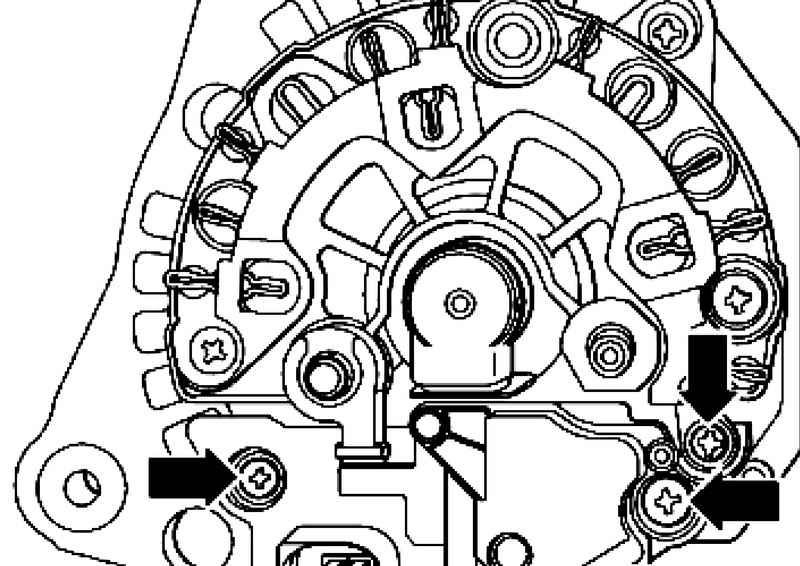

Fig. 7.68. Fixing bolts of the voltage regulator


Turn off fixing bolts of the voltage regulator (Fig. 7.68).
Remove the voltage regulator of the generator.

Setting
Installation is carried out in reverse order.
Tighten to the specified torque (see. Table. 7.3).
