Removing and installing mounting fan



Withdrawal
Drain the coolant.

Mount the fan

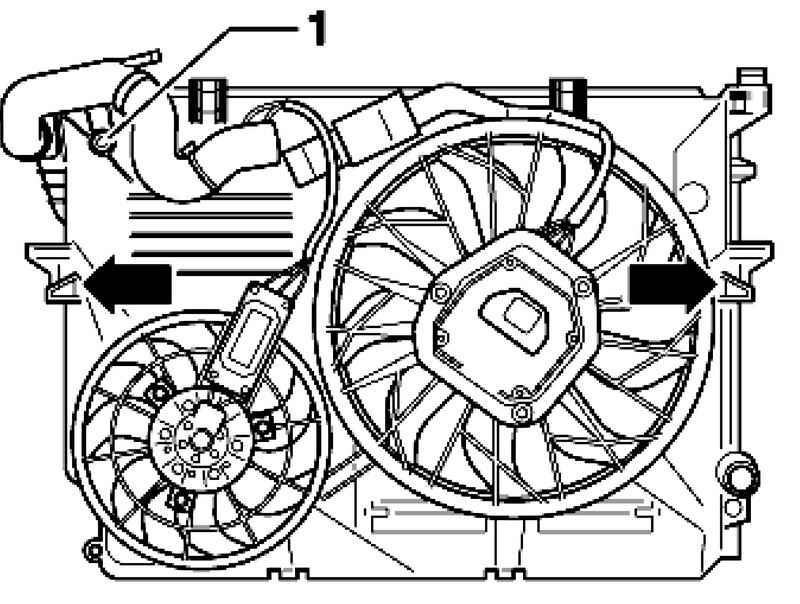

Fig. 2.245. Mount the fan


Remove the mounting bracket of the upper coolant hose, remove the screw 1 (fig. 2.245).
Remove upper coolant hoses from the radiator.
Remove the front bumper.
Result a radiator framework in service position.
Disconnect the cooling fan connectors.
Unscrew and remove the fan bracket.

Setting
Install in reverse order, with the following should be considered.
Mounting the fan should go into the slots provided for it.
Fill in cooling liquid.
