Lubrication system (diesel engines)

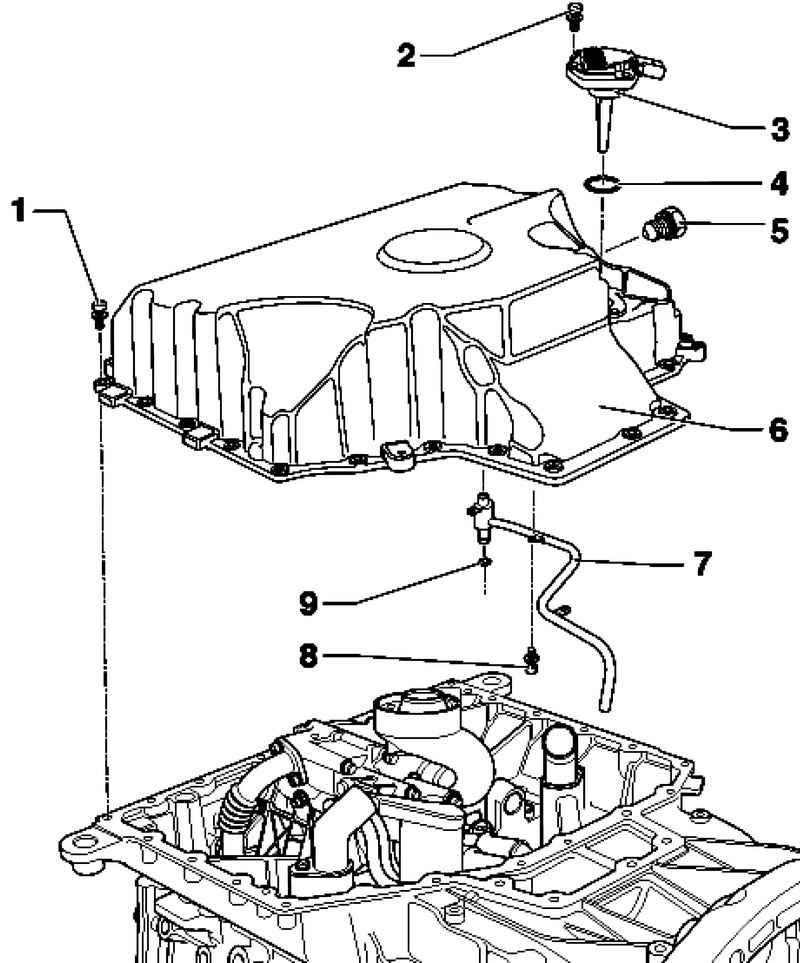

The components of the oil sump
Fig. 2.260. The components of the oil sump: 1 - a bolt 8 Nm; 2 - a bolt 8 Nm; 3 - level sensor and engine oil temperature G266; 4 - Seal; 5 - Oil drain plug, 30 Nm; 6 - the oil sump; 7 - the oil pipeline; 8 - a bolt 8 Nm; 9 - O-ring

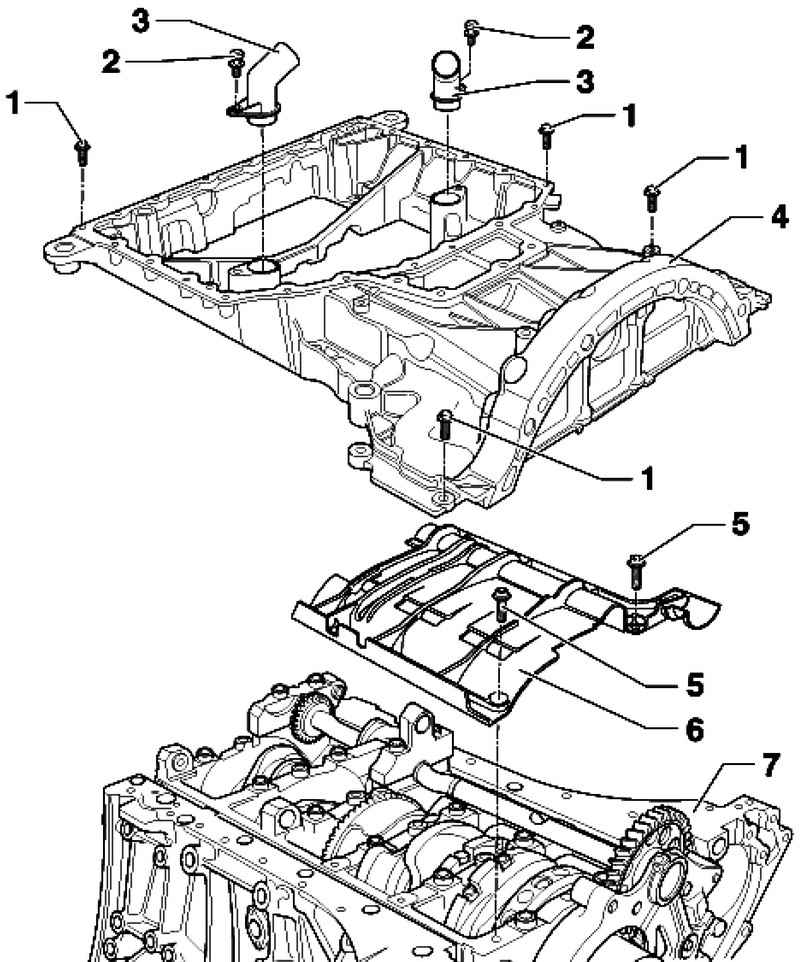

The components of the oil pan
Fig. 2.261. The components of the oil pan: 1 - a bolt 8 Nm; 2 - a bolt 8 Nm; 3 - the oil pipeline; 4 - the oil pan; 5 - a bolt 10 Nm; 6 - screen proofing; 7 - crankcase
