Removing and installing the battery, under the driver's seat
Removing the battery
When disconnecting the battery, always observe the sequence of actions described in the workshop manual Failure to follow the correct sequence could bring the inclusion isolator batteries and damage to electrical equipment.
Disconnect the battery

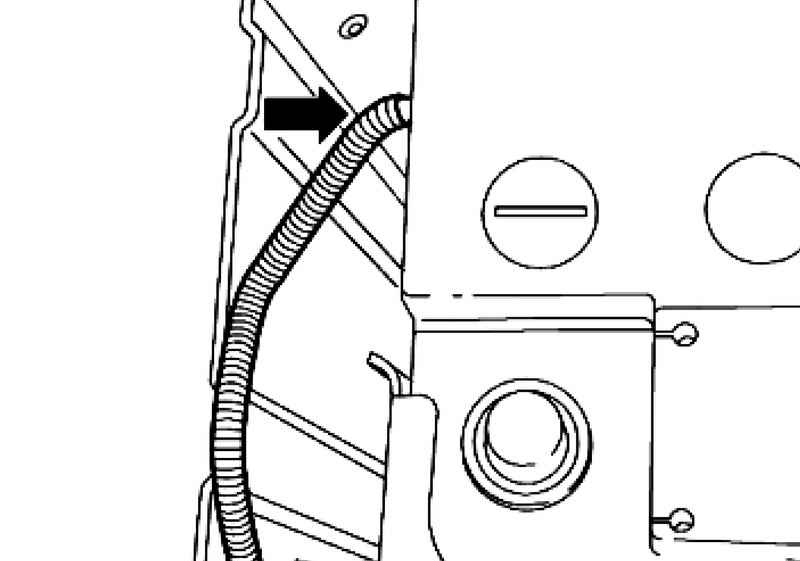

Remove the hose from the central venting battery (Fig. 7.18).

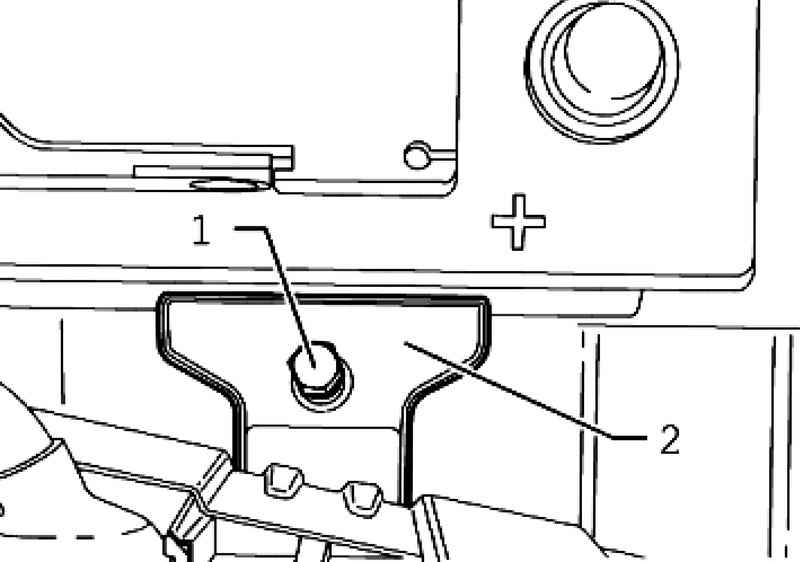

1 Remove the fixing bolt and remove the holder 2 (Fig. 7.19).

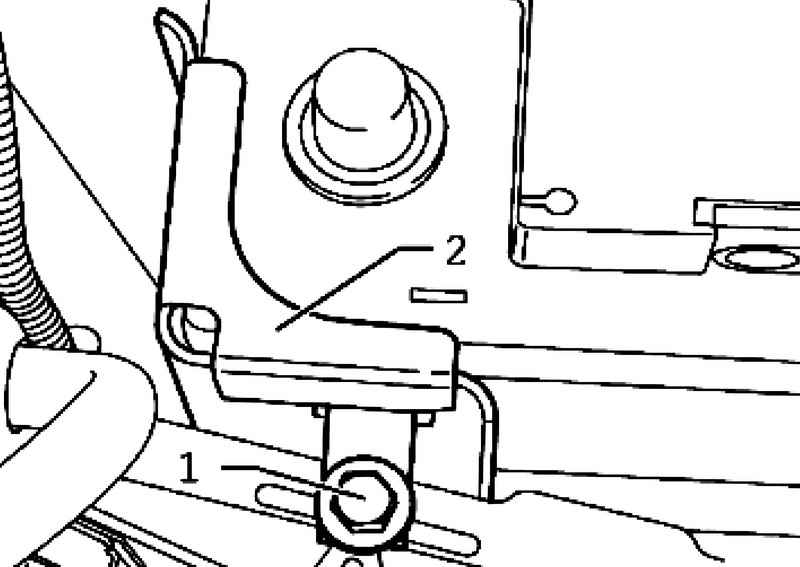

1 Remove the fixing bolt and remove the holder 2 (Fig. 7.20).
Take the battery in the handle and lifting it, remove the battery box.
Installing the battery
Installation is carried out in reverse order.
