Align the exhaust system



Condition
The exhaust system must be cool.

The order of execution of works

Align the exhaust system

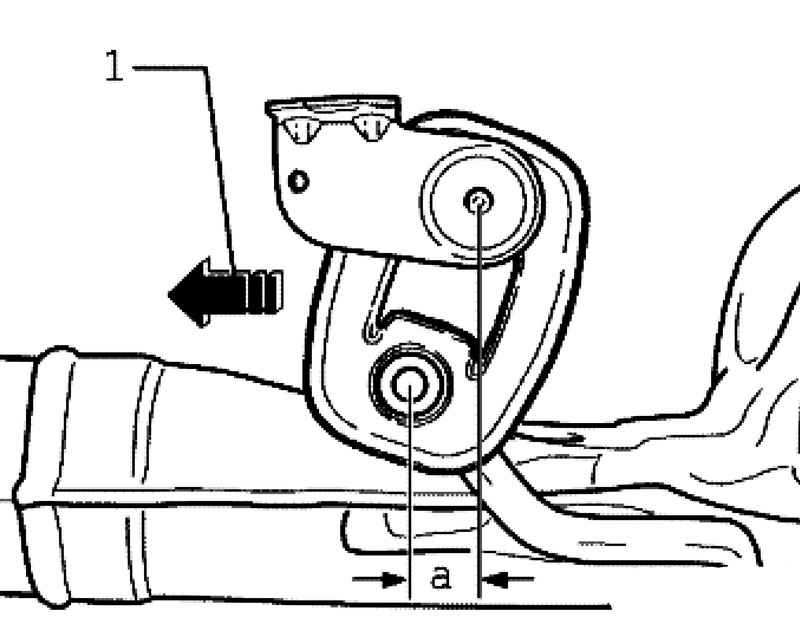

Fig. 2.299. Align the exhaust system


Slide the entire exhaust system in the direction of 1 and tighten the dual hose clamps so that on the fastening elements has been made size a (Fig. 2.299).
Middle Silencer: the size of a = 10 mm.
Rear silencer: razamer a = 15 mm.
