Electronic control of engine power (electronic throttle actuator)



The components of the accelerator pedal

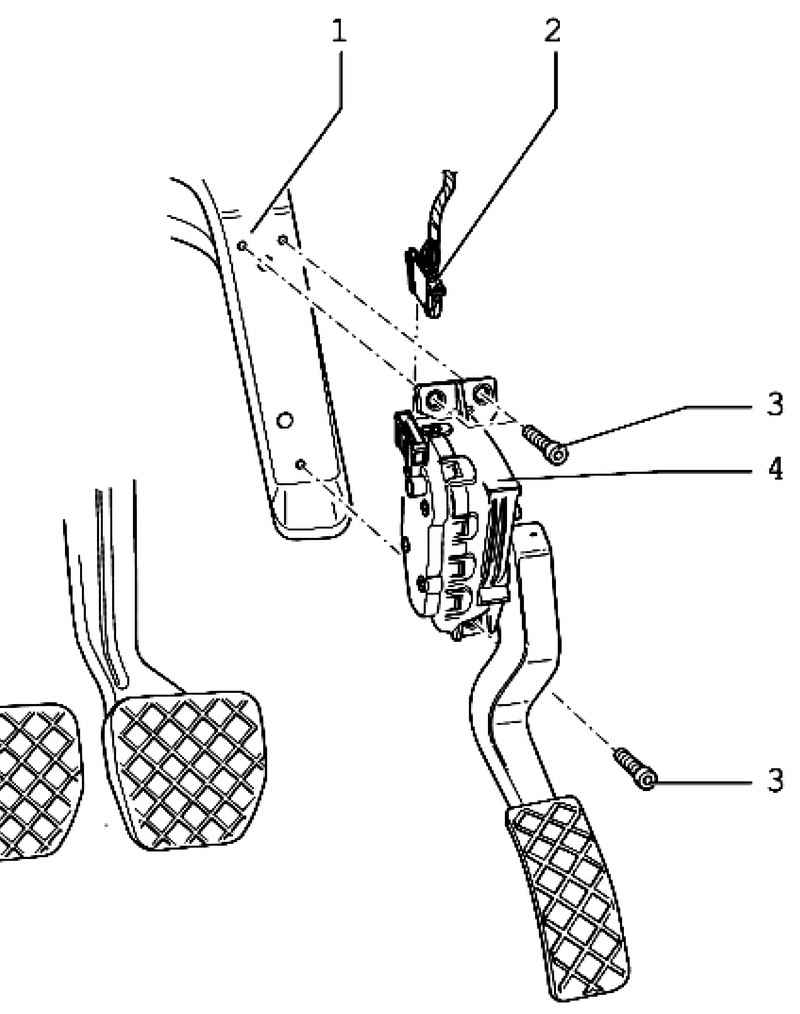

Fig. 2.319. The components of the accelerator 1 - support bracket; 2 - plug; 3 - a bolt 10 Nm; 4 - the gauge of the accelerator pedal position sensor G79 2 accelerator pedal position G185



The principle of operation of the electronic throttle actuator
The position of the accelerator pedal is transmitted to the engine control unit through the two accelerator pedal position sensor (variable resistors, installed in one housing) that are associated with the accelerator pedal.
Accelerator pedal position (depending on the actions of the driver) is the engine control unit for the main input value.
Throttle actuator carried by the electric motor (throttle actuator) module throttle valve, namely, over the entire range of revolutions and load.
The throttle actuator is driven by signals from the engine control unit.
When the engine stopped and the ignition on, the engine control unit controls the throttle servo, exactly matching the data with the accelerator pedal position sensor. This means that when the accelerator pedal is half depressed, and the actuator is equally open throttle; In this case also the throttle is opened to about half.
When the engine is running (under load) the engine control unit can open and close the throttle, regardless of the accelerator pedal position sensor.
For example, the throttle valve may be already fully open, while the accelerator pedal is depressed only halfway. The advantage of this scheme is that it prevents the loss of throttling on the throttle.
In addition, under certain loads marked noticeably better performance on emissions and fuel consumption.
The engine control unit, analyzing the amount of torque required for the various components (eg. Climate control, automatic transmission, ABS / ESP ..), calculated for a given situation the optimal throttle opening angle.
