Distribution bars

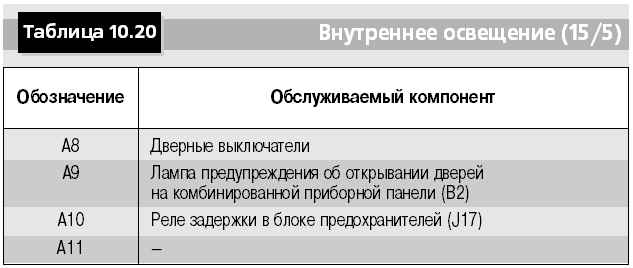

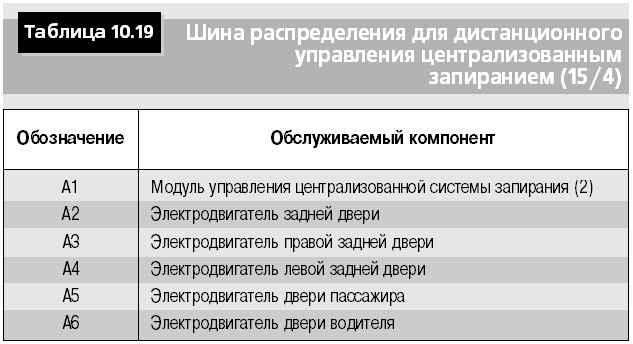

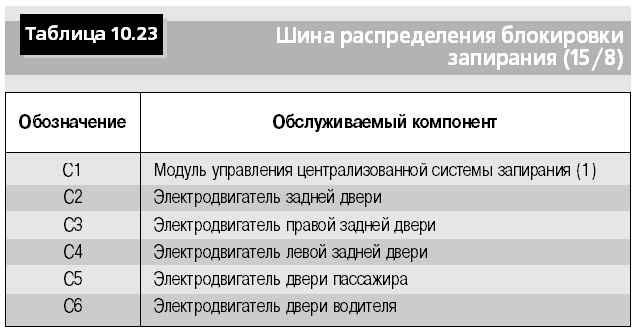

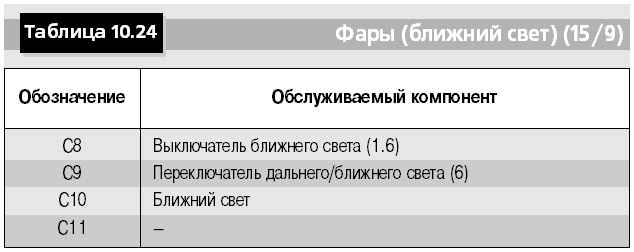

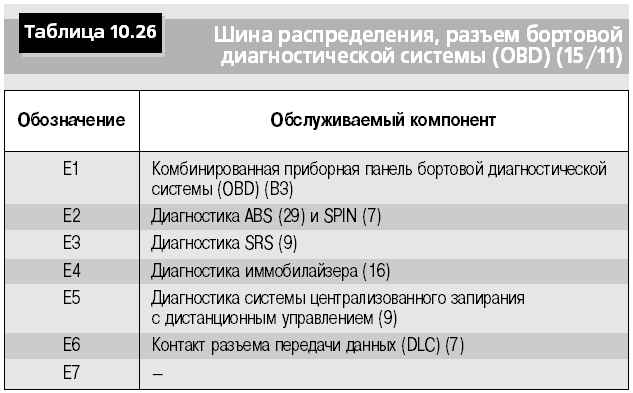

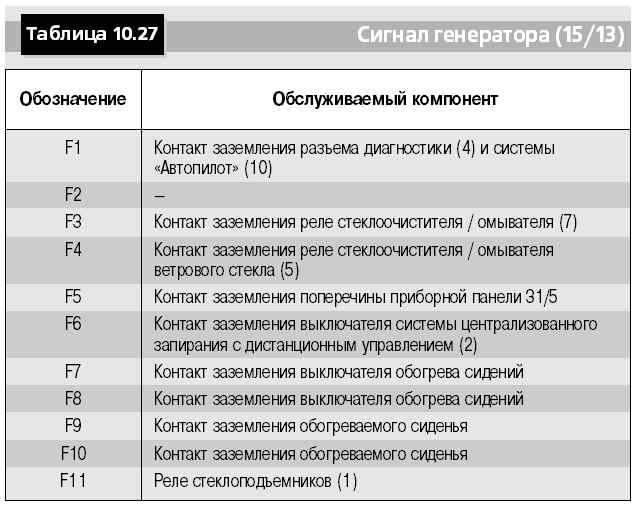

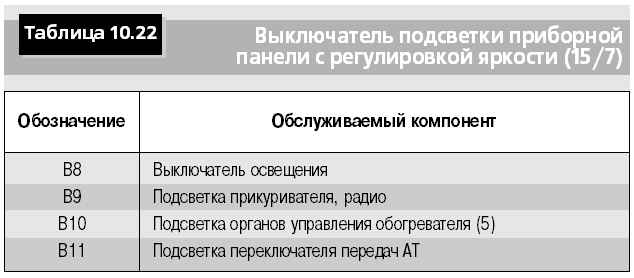

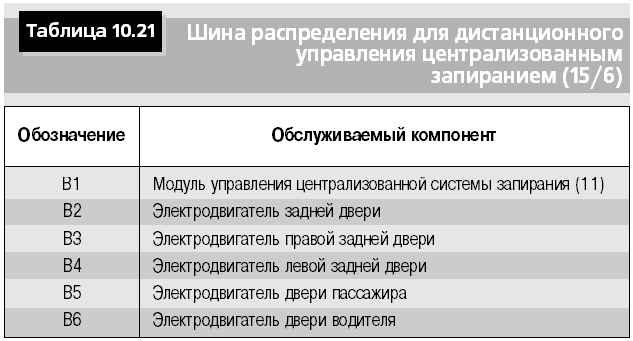

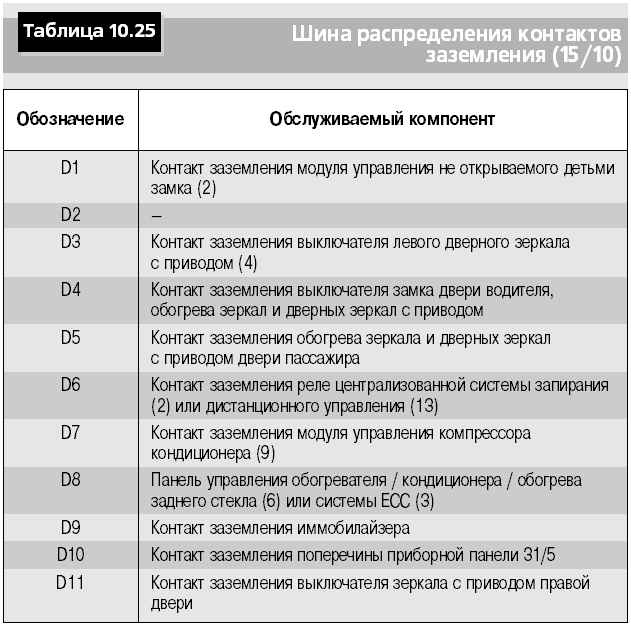

Table. 10.19, 10.20, 10.21, 10.22, 10.23, 10.24, 10.25, 10.26, 10.27 given distribution bus nodes and control various circuits of individual units. In Fig. 10.92 shows the location of distribution of tires.

Location distribution bars
Fig. 10.92. Location distribution bars
