Overview



The appearance of the engine
Fig. 3.1. The appearance of the engine

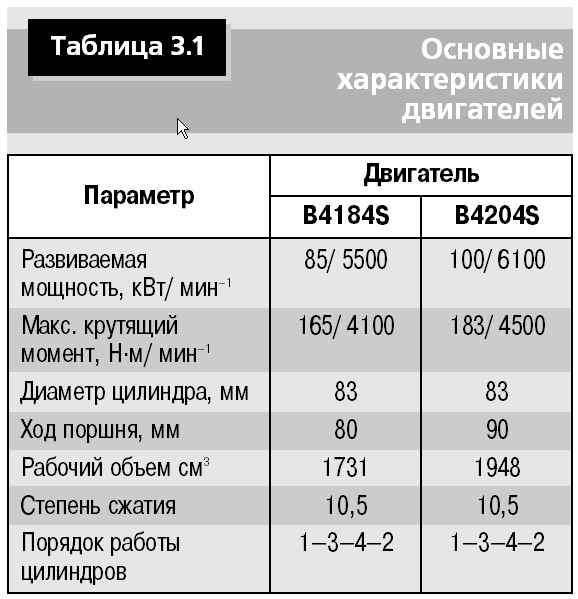

Engines (Fig. 3.1) and V4204S V4184S - four-cylinder, shestnadtsatiklapannye. Structurally, the engines are the same. Both engines can be completed both with automatic and manual transmission. Basic parameters of the engines shown in Table. 3.1.
Under option configuration with a manual gearbox the engine V4184S assembled gearbox JB3, and V4204S engine - gearbox JS5.
Both engines can be operated with an automatic transmission Aisin Warner 50-42.
Both engines used engine management system Fenix 5.1 of the same design.
Engine Mounts located to the right on the right inside of the bumper, on the left on the left side member and the central longitudinal member front and back.
