Checking the belt pulley on the bias (petrol engine 4,2L)



NOTE
After replacing vane pump for power steering, air conditioning compressor and power steering pump bracket and the air conditioner compressor is necessary to carry out the following checks on the belt pulley misalignment to avoid damage to the V-ribbed belt.

Remove the pulley-steering vane pump.
Remove the serpentine belt.

Removing the tap-off roller

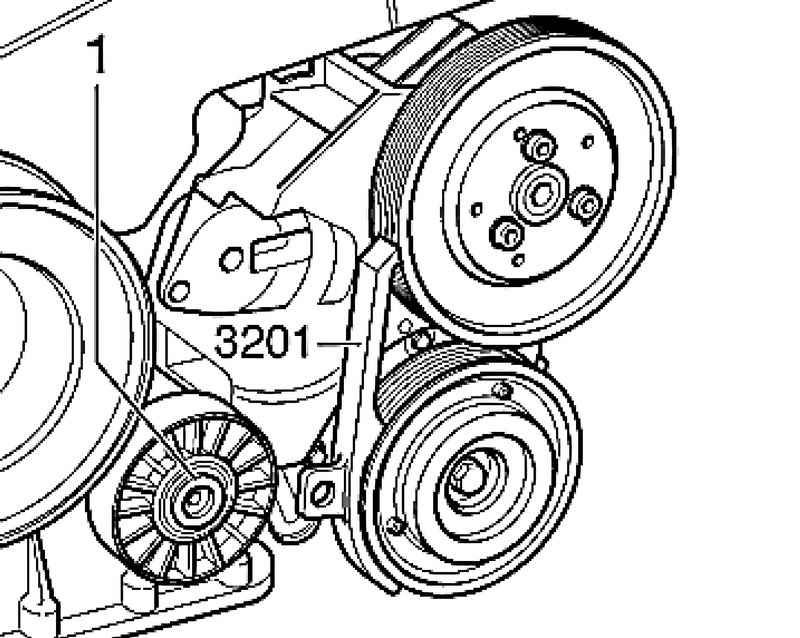

Fig. 2.6. Removing the tap-off roller: 1 - discharge roller


Remove the discharge roller 1 (Fig. 2.6).
Apply a template to a 3201 belt pulley for air conditioner compressor.

NOTE
Air conditioner compressor pulley must match the power steering pump pulley.

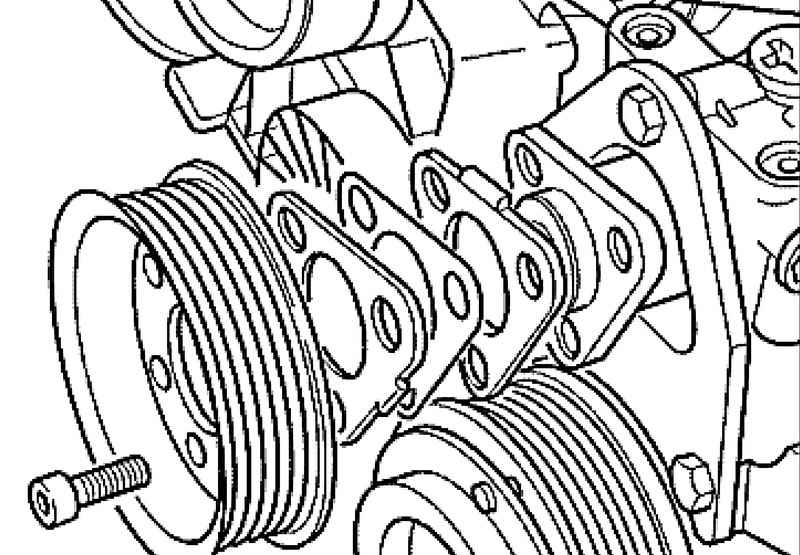

Compensation washers
Fig. 2.7. Compensation washers


If the pulleys are not the same distance, align pulleys shims of 0.6; 0.8; 10; 1.2 and 1.4 mm (Fig. 2.7).
Finally, check the alignment of the pulleys using the template 3201.
Install vent clip. Torque: 25 Nm.
Install the serpentine belt.
Tighten the fastening screws power steering pump pulley to a torque of 22 Nm.
