Removing and installing V-ribbed belt (gasoline engine 3,2L)



Withdrawal
Mark direction of travel V-ribbed belt.

Lock the tension wheel

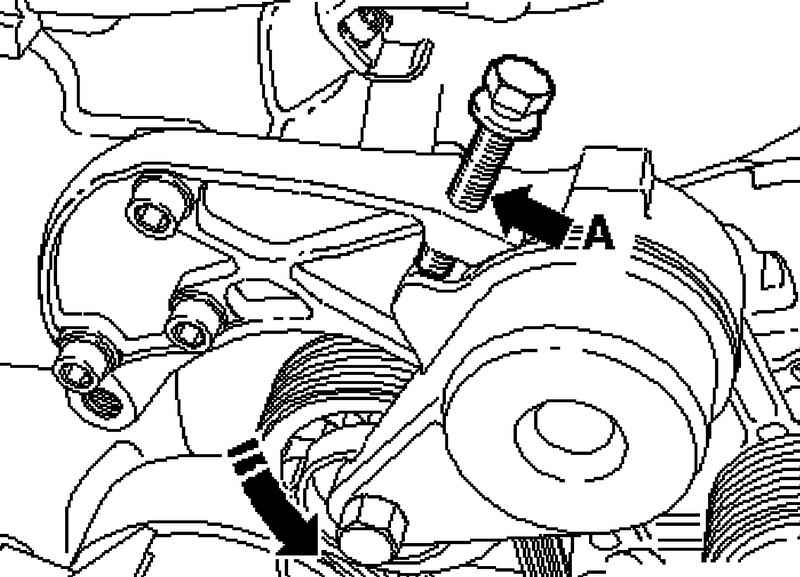

Fig. 2.4. Lock the tension wheel


Suitable wrench push the tension lever in the direction of the arrow (Fig. 2.4).
Screw the bolt into the threaded hole M8h50 A, fixing the so-ribbed belt tensioning roller.

NOTE
Screw the bolt just enough to ensure the removal of V-belt, otherwise it may be damaged body tension roller.

Remove the serpentine belt.

Setting
Before installing poly V-belt, check and tighten all assemblies (generator, air conditioning compressor, vane pump).
Check ease of rotation of the vent clip.
When installing the V-ribbed belt in the proper direction of travel and the correct position of the belt on the pulleys.
Route the serpentine belt and unscrew a bolt M8 tension roller.

Check travel accessory drive belt

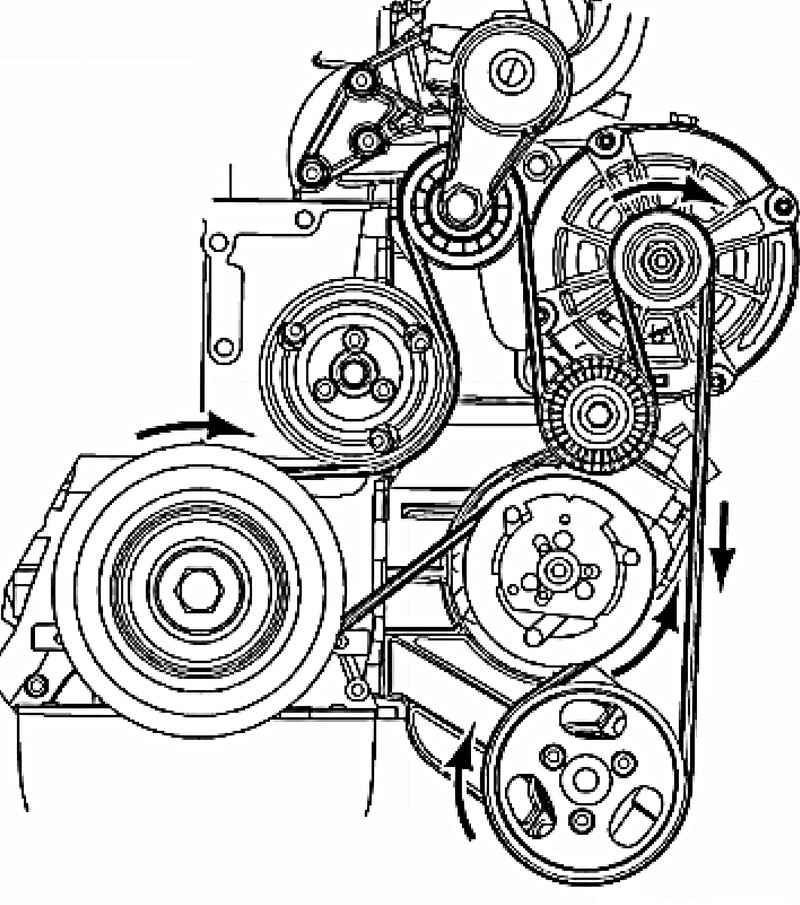

Fig. 2.5. Check travel accessory drive belt


Start the engine and check the progress of the belt (Fig. 2.5).
