Removal and installation of the oil nozzle



NOTE
Oil nozzles installed in the crankshaft main bearings 2-7.

Withdrawal
Squeeze oil nozzle, exerting pressure on her spine M4 mm side motor bearing.

Setting

Fitting oil nozzle

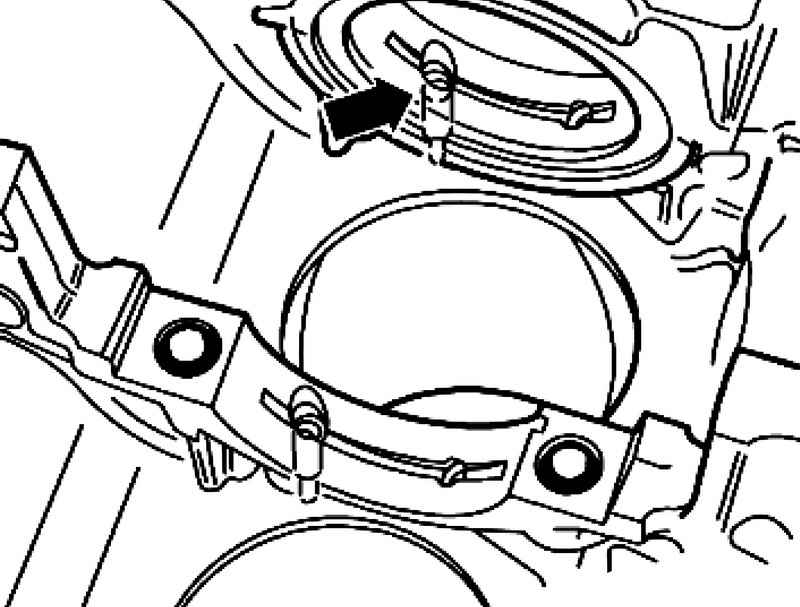

Fig. 2.250. Fitting oil nozzle


To install by hand with special tool ZH6 mm press-fit the oil nozzle (Fig. 2.250).
