Checking the oil level in the rear of the main transfer



Bolt oil level

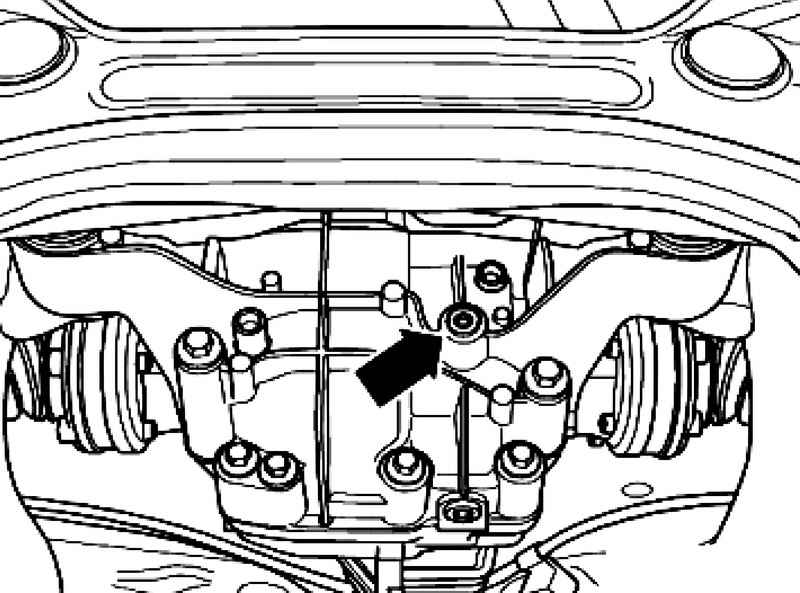

Fig. 3.143. Bolt oil level


Remove the bolt for the oil level (Fig. 3.143).
The oil level is sufficient, if it is within the lower edge of the filler opening rear final drive.
Tighten the bolt with a new sealing ring.
When the Gulf oil pay attention to the following points.
Remove the bolt.
Fill the gear oil to the lower edge of the filler hole.
Tighten the bolt with a new sealing ring.
Torque: bolt for the oil level at the rear of the main transmission 35 Nm.
