The propeller shaft







NOTE
PTO shafts can not be repaired.
The rear propeller shaft bend, store and transport in a horizontal position.
Remove the rear propeller shaft mounting positions up.
Before removing the position of all parts in relation to each other tick. The assembly is carried out in the same position, otherwise there is an imbalance that can cause damage to the bearings and manifest in the form of increased noise.
If the front driveshaft is disconnected only from the transfer case or only on the front of the main transmission, or rear propshaft from the rear final drive, the corresponding propshaft must be bound or under it should be set to support.
When complaints of vibration noises front or rear propeller shaft before replacing the propeller shaft corresponding to the main shaft of the transmission to be shifted to one mounting hole. These works can be conducted 5 times in the final drives and 2 on the transfer case.


The propeller shaft and the front main gear

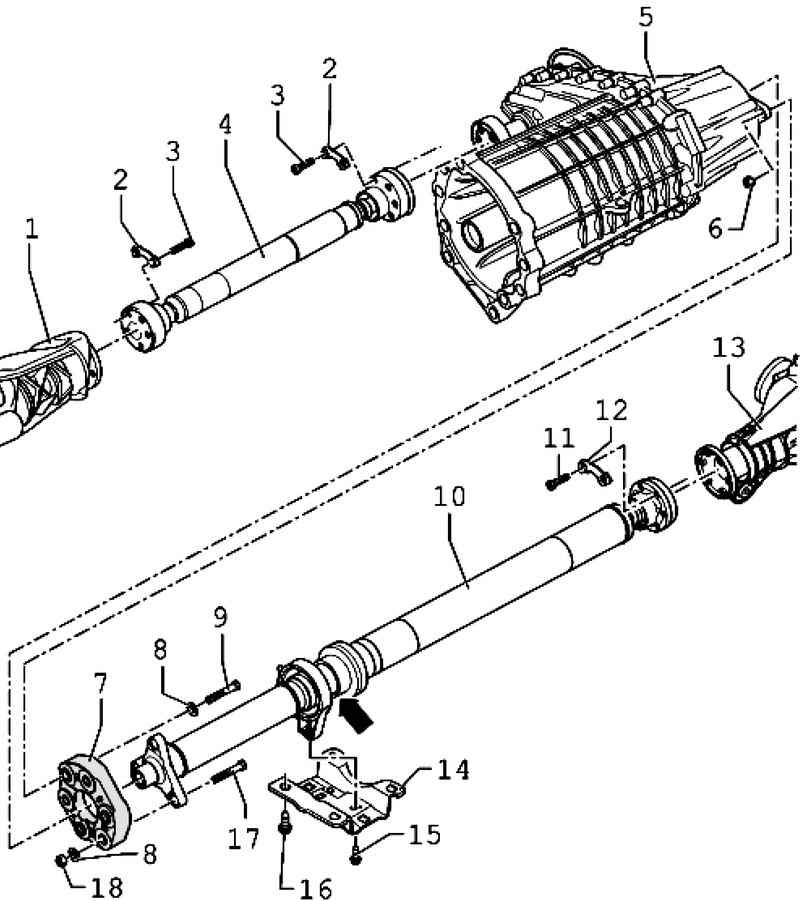

Fig. 3.128. The propeller shaft and the front main gear: 1 - front final drive; 2 - liner 3 - bolt 30 Nm 90 ?�; 4 - Front propeller shaft; 5 - speed transfer case; 6 - hex nut; 7 - disc hinge; 8 - a washer; 9 - a bolt 75 Nm; 10 - Rear propeller shaft; 11 - tighten the bolt on the inside with an asterisk torque 30 Nm and tighten to 90 ?�; 12 - a lining; 13 - rear final drive; 14 - the holder; 15 - a bolt, 20 Nm; 16 - bolt 60 Nm; 17 - a bolt; 18 - hexagonal nut, 75 Nm
