Piston rings

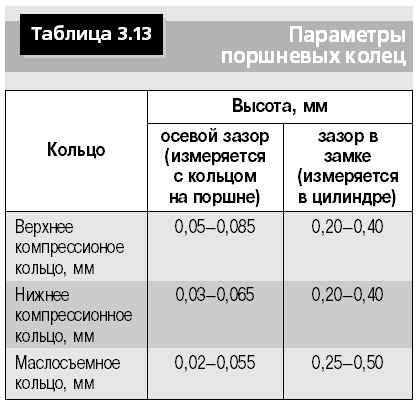

On the piston set three piston rings: two compression and one oil scraper. The main parameters of the piston rings are shown in the Table. 3.13.
