Checking axial clearance of camshafts

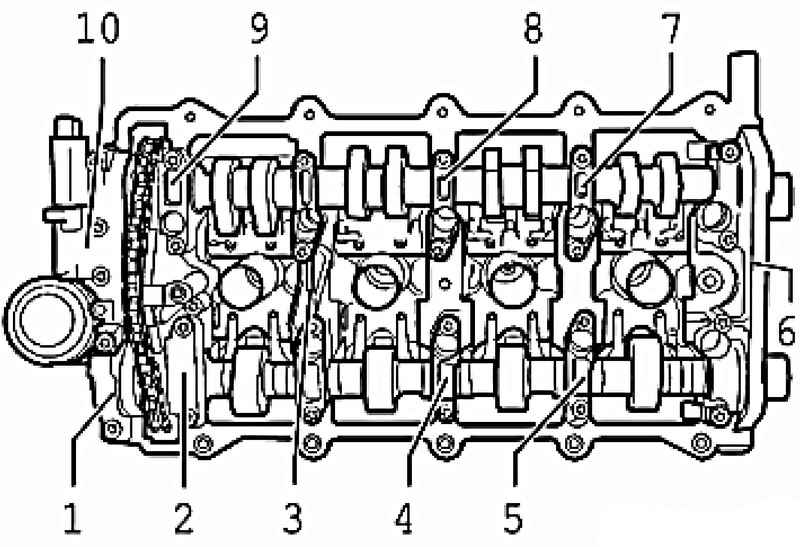

Checking procedure To conduct measurements should be taken at the poles and roller levers.
Inlet camshaft

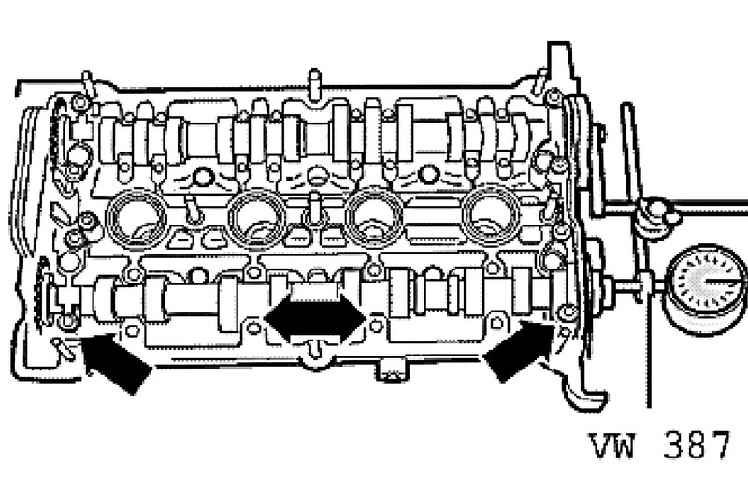

| Fig. 2.118. Setting the indicator to check the intake camshaft
|
Place the universal holder with dial gauge on the cylinder head, as shown in Figure 2.118. Axial backlash, wear limit of max. 0.20 mm.
The exhaust camshaft

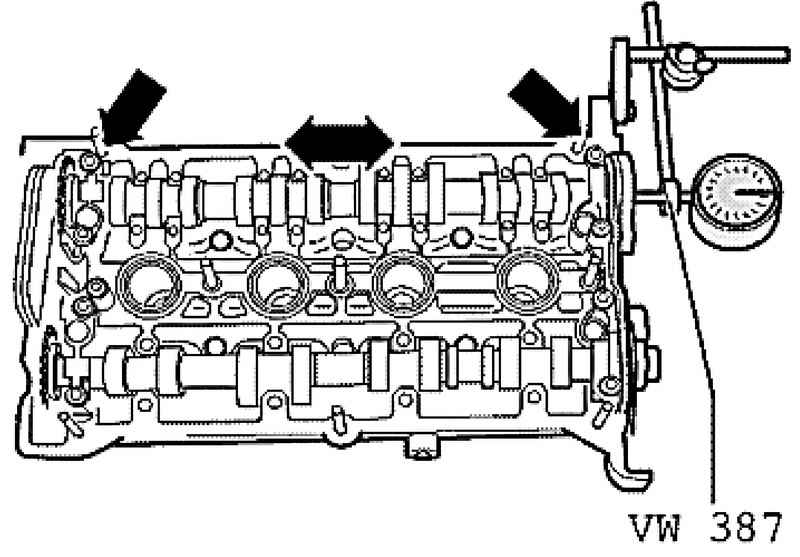

| Fig. 2.119. Setting the indicator for checking the exhaust camshaft
|
Place the universal holder with dial gauge on the cylinder head, as shown in Figure 2.119. Axial backlash, wear limit of max. 0.20 mm.
|
