Checking the oil level in the main transmission of the front axle



Bolt oil level

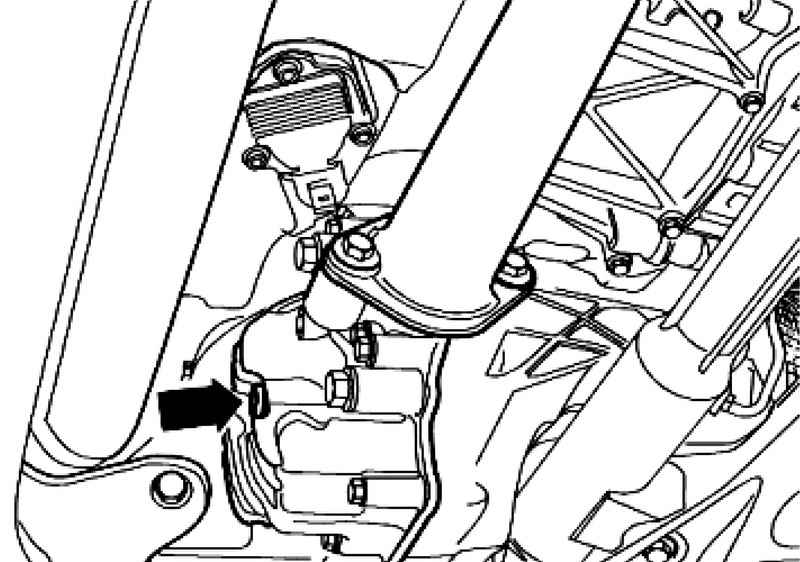

Fig. 3.127. Bolt oil level


Remove the bolt for the oil level (Fig. 3.127).
The oil level is sufficient, if it is within the lower edge of the filler holes of the front main gear.
Tighten the bolt with a new sealing ring.
When the Gulf oil pay attention to the following points.
Remove the bolt.
Fill the gear oil to the lower edge of the filler hole.
Tighten the bolt with a new sealing ring.
Torque: bolt for the oil level on the front of the main transmission 35 Nm.
