Electrical / electronic components and fitting locations to dropbox

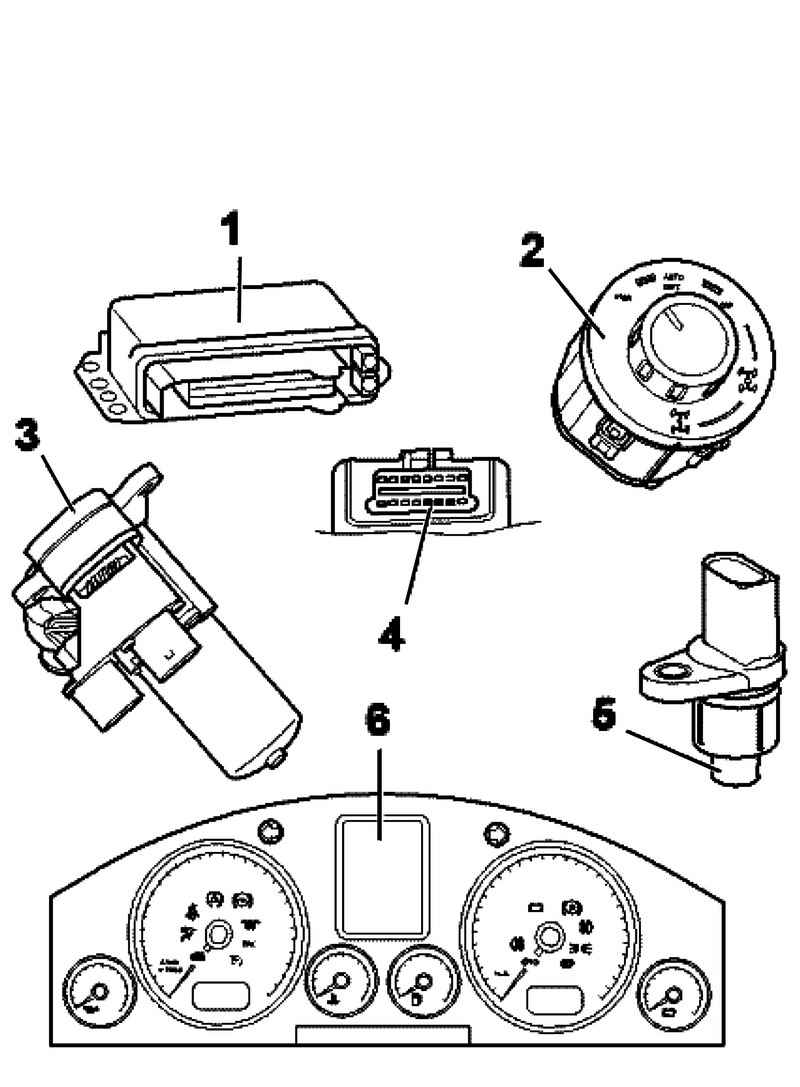

Fig. 3.88. Electrical / electronic components and fitting locations on the transfer case: 1 - control the transfer case; 2 - management body transfer case; 3 - motor transfer case; 4 - diagnostic connector; 5 - the switch of idling; 6 - multi-function display in the instrument cluster

Position transfer box control unit J646

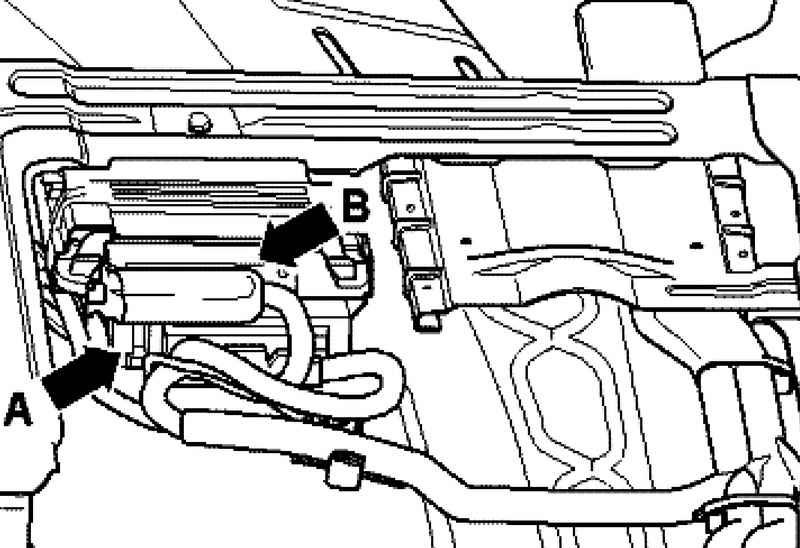

Fig. 3.89. The control unit is the transfer case

Transfer case control unit J646 is located under the right front seat (Fig. 3.89).

Position management body transfer case E473

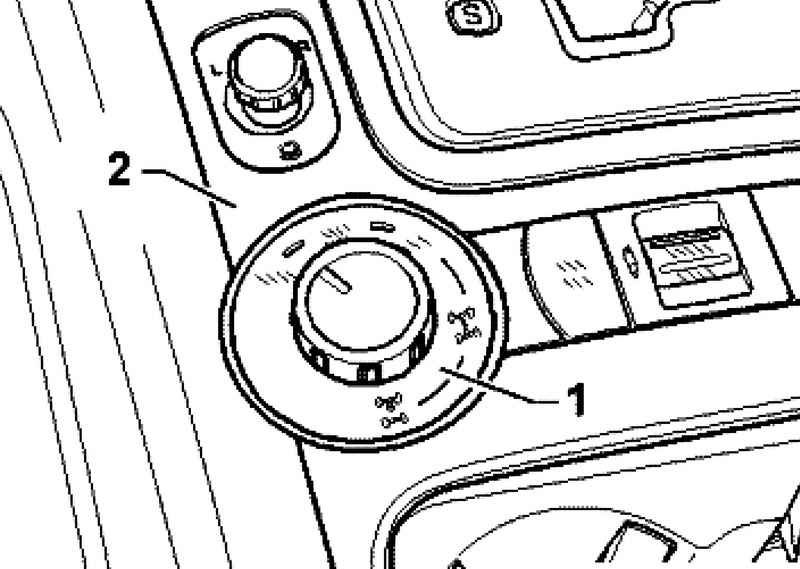

Fig. 3.90. Position management body transfer case E473

The management body of the transfer case E473 1 is at the bottom of the center console 2 (Fig. 3.90).
