Removing and installing transfer case control unit J646



Withdrawal
Remove the front right seat.
If there is, remove facing seat frame.
First, you must check whether the car radio with coding. If so, you should know the security code.
Turn the ignition and all electrical consumers and remove ignition key.
Disconnect the battery earth wire.
Disconnect plug connection 1bloka control J646 and the transfer case, if necessary - plug connection of the control unit 2 Automatic. gearbox J217.

Plug connection of the control unit transfer case

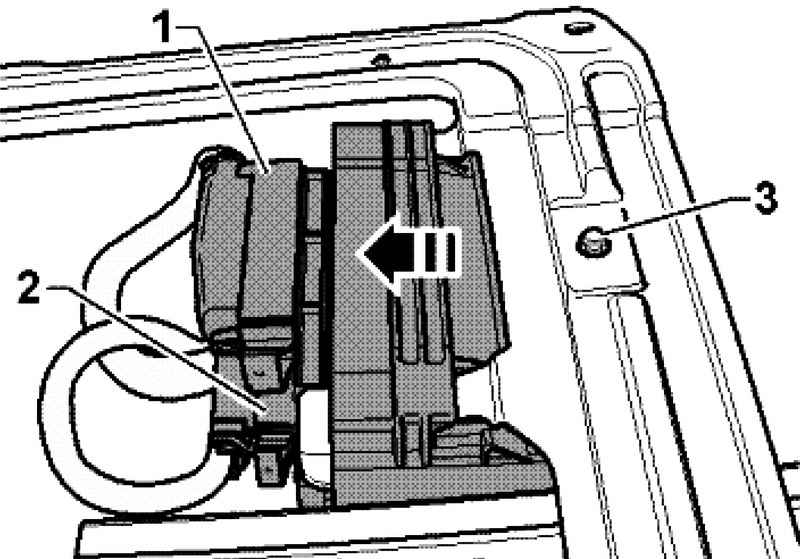

Fig. 3.93. Plug connection of the control unit transfer case


Remove the screw 3 (Fig. 3.93).
Remove the bracket from the control unit J646 transfer case in the direction of the arrow from the holder on the frame of the seat.

Catches transfer case control unit

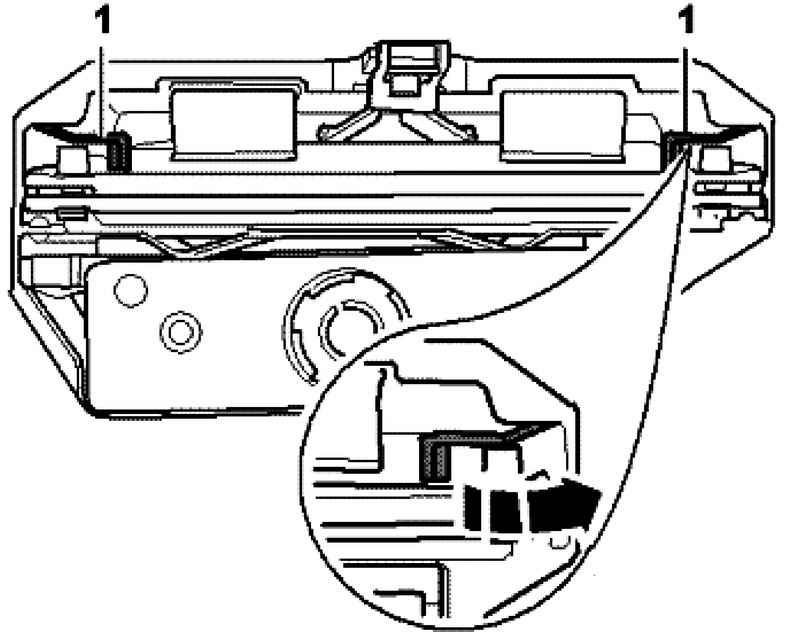

Fig. 3.94. Catches transfer case control unit


Click on the tabs in the direction of the arrow 1 and remove the transfer case control unit J646 from the holder (Fig. 3.94).
At the same time, make sure that the control unit J646 transfer case is not dropped.

Setting
Install in reverse order, with the following should be considered.
Insert the transfer case control unit J646 with overlays 2 stops in 1 seat frame (Fig. 3.93).
3 Tighten the bolt to a torque of 8 Nm.
Connect the mass cable to the battery and carry out the operation for connecting the battery.
