Installing the motor transfer case V253

If the new motor transfer case, observe the following.

The control element transfer case E473 switch off the ignition is turned to the ?�LOW / LOW".

The control element transfer case E473 is set to ?�LOW / LOW".

Val interrupted with a toothed sector 1 must be in position A.

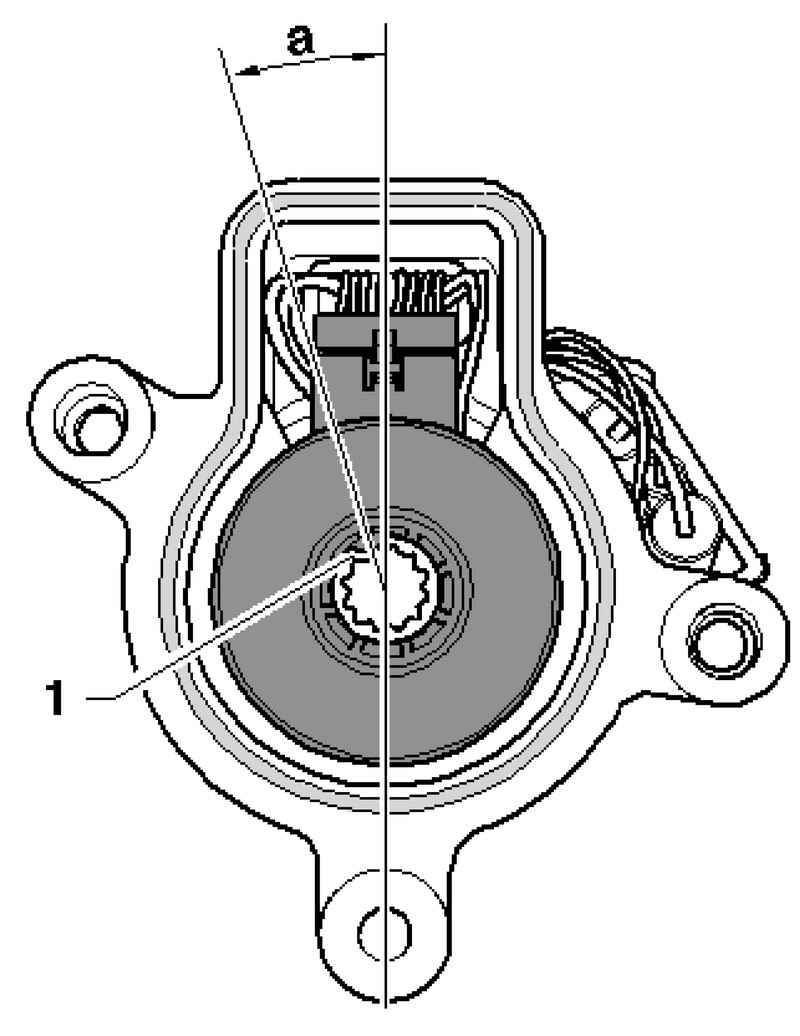

a = approx. Of 10 ?� (Fig. 3.125).

If you want to - put shaft interrupted a number of teeth 1 on the motor transfer case as shown in Figure 3.125 (eg with a screwdriver).

The control element transfer case - E473 - is not in the ?�LOW / LOW"

Val interrupted with a toothed sector 1 must be in position A.

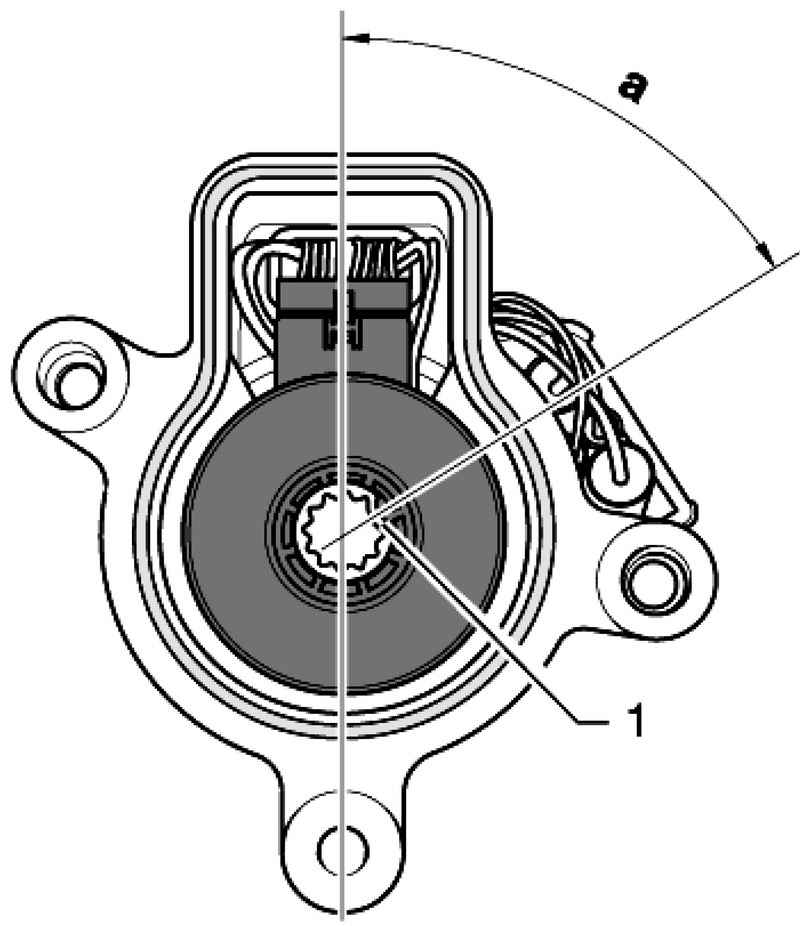

a = approx. 60 ?� (Fig. 3.126).

If you want to - put shaft interrupted a number of teeth 1 on the motor transfer case as shown in Figure 3.126 (eg with a screwdriver).

Make sure to have the motor transfer case O-ring at the base of the groove adjacent to seal the transfer case.

Install the transfer case to the motor mounting sleeve 2 transfer case.

At the same time, take care to interrupt the row of teeth of the motor shaft and transfer case shift control / transfer case coincided.

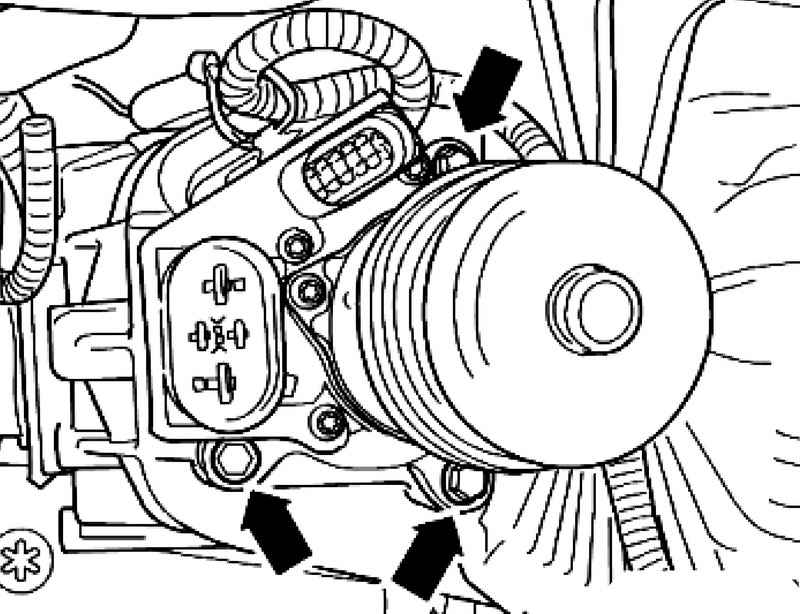

Screw and tighten the motor transfer case (Fig. 3.124).

Install the holder D.

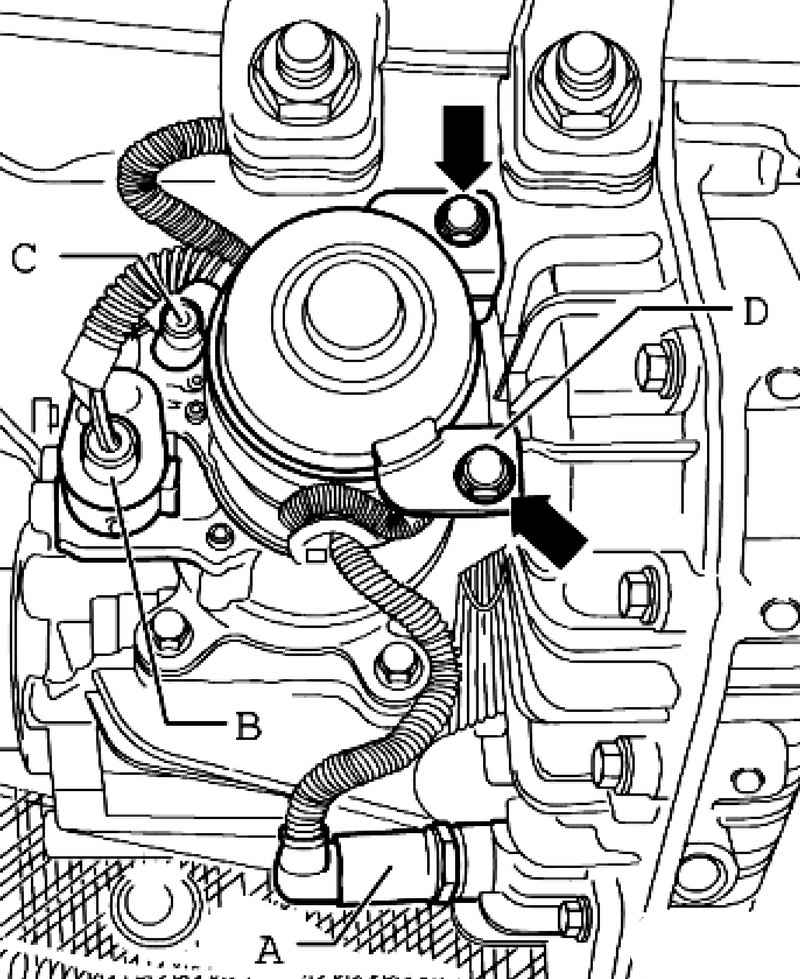

Connect connectors A, B and C (Fig. 3.123).

In the presence of - set the screen on the motor transfer case.

Check the oil level in the transfer case.

Torque:

- Motor transfer case to the transfer case - 27 Nm;

- The holder to the transfer case - 14 Nm.
