Replacing the rubber bearing bracket Transmission



Remove the transmission bracket.

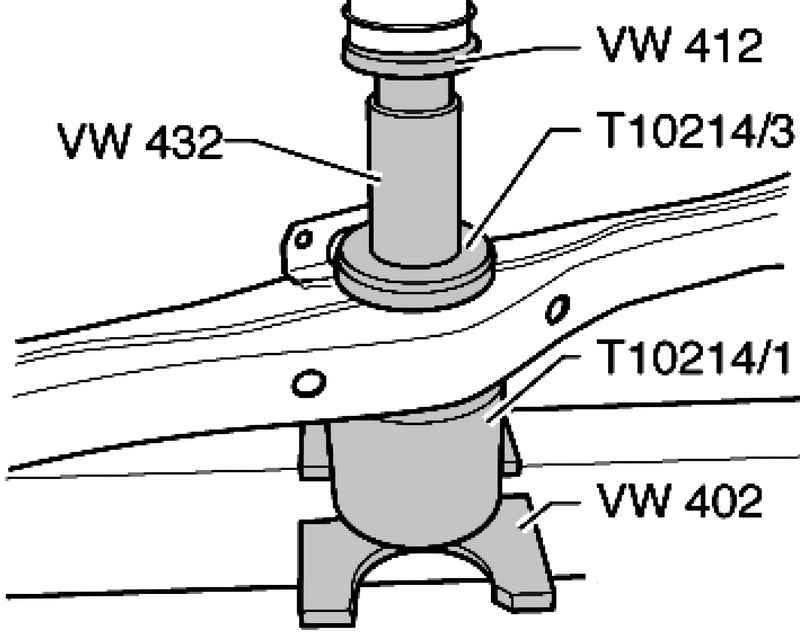

Removing the rubber bearing
Fig. 3.102. Removing the rubber bearing


Squeeze the rubber mounts (Fig. 3.102).
Screw the new rubber mounts to the palm T10214 / 3.

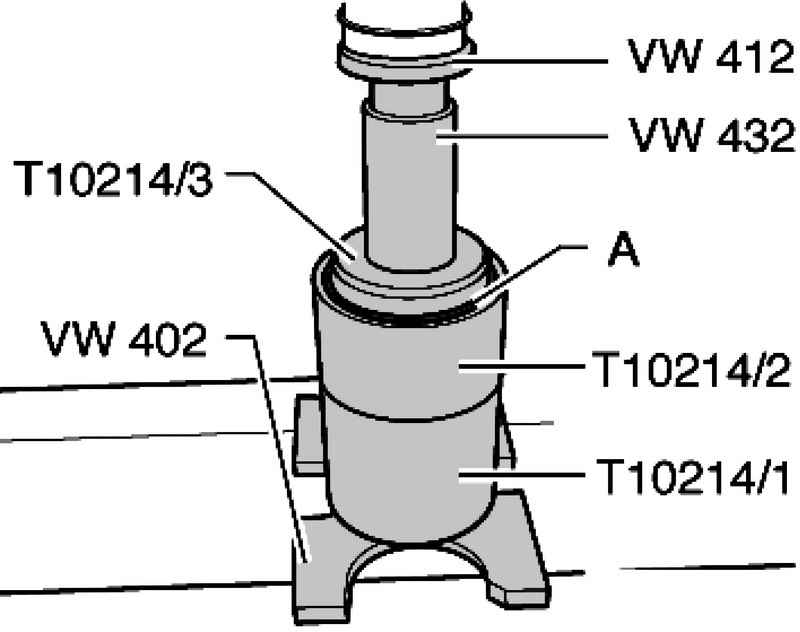

Installation of the new rubber mounts
Fig. 3.103. Installation of the new rubber mounts


Press in rubber mounts And with stop T10214 / 3 into the guide sleeve T10214 / 2, while the emphasis T10214 / 3 snaps to the guide sleeve T10214 / 2 flush (Fig. 3.103).

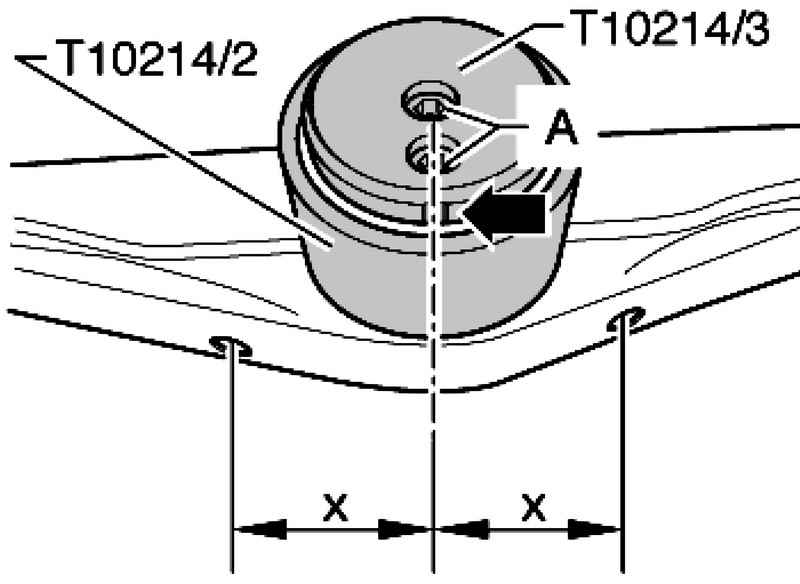

Installation of the new rubber mounts on the bracket
Fig. 3.104. Installation of the new rubber mounts on the bracket


Point the new rubber mounts with the help of a mounting device to the bracket T10214 gearbox (Fig. 3.104).
To do this, the bolts A or grooves on the palm T10214 / 3 must be aligned with the center of the holes in the bracket gearbox.
Distances ?�x?� must be equal.

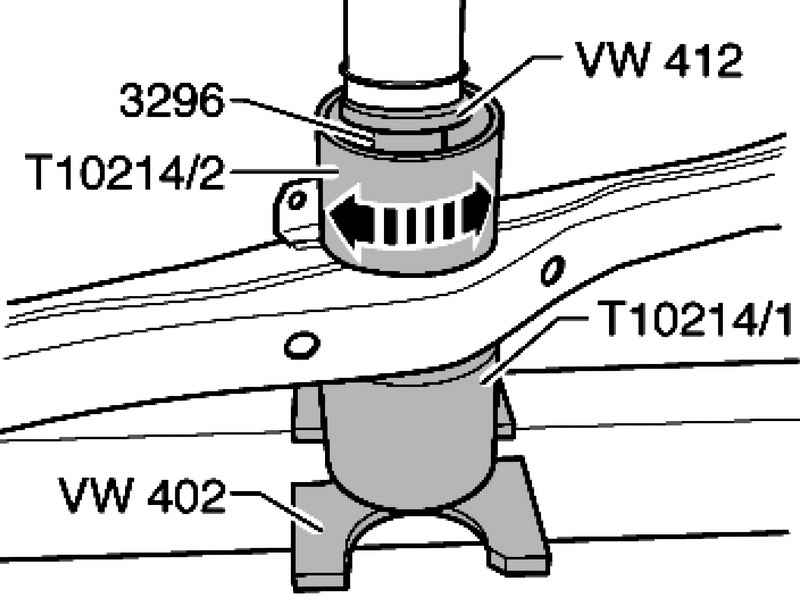

Pressing the new rubber mounts on the bracket
Fig. 3.105. Pressing the new rubber mounts on the bracket


Then press in rubber mounts in the arm of a transmission, is a guide sleeve T10214 / 2 will not rotate by hand (Fig. 3.105).
Fitting the rubber mounts on the length not exceeding the length of the tube 3296, if necessary, put the squeeze emphasis VW 441 to the limiter.
Install the transmission bracket.
