Marking the back of the main transfer



NOTE
Rear final drive 0AB / OAC is designed for an automatic transmission 09D and manual gearbox 08D.

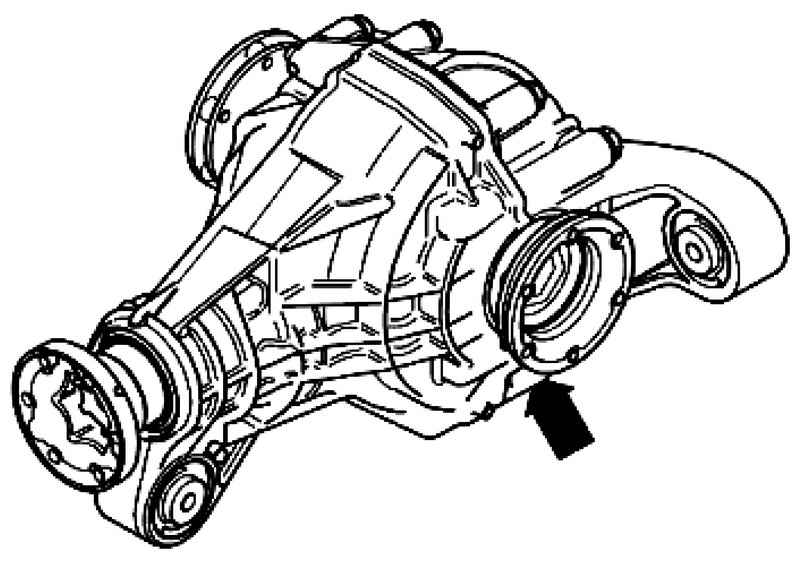

Location of marking on the back of the main transmission
Fig. 3.86. Location of marking on the back of the main transmission


Location of marking on the back of the main transfer lettering is shown in Figure 3.86.

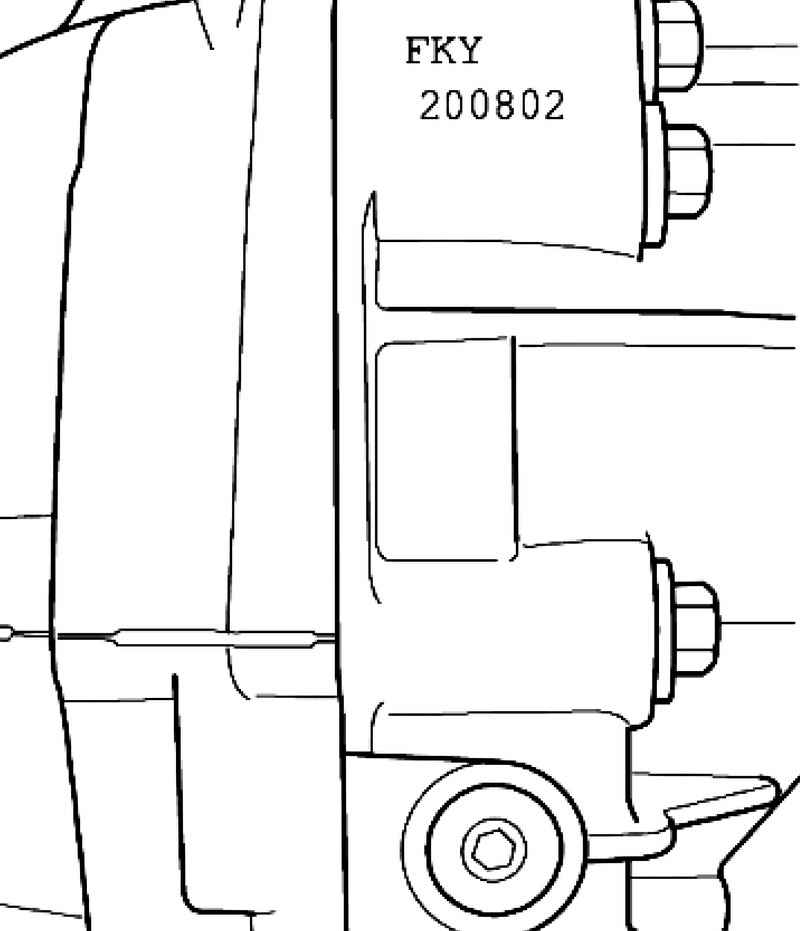

Letter designations and specifications rear final drive
Fig. 3.87. Letter designations and specifications rear final drive


Letter designations and specifications rear final drive (Fig. 3.87).
