Removal and installation of the membrane potentiometer stroke brake booster G420



NOTE
Use only new brake fluid. Follow the instructions on the packaging of the brake fluid.

Withdrawal
Remove the liner plenum chamber
Disconnect the plug from the potentiometer spring travel.

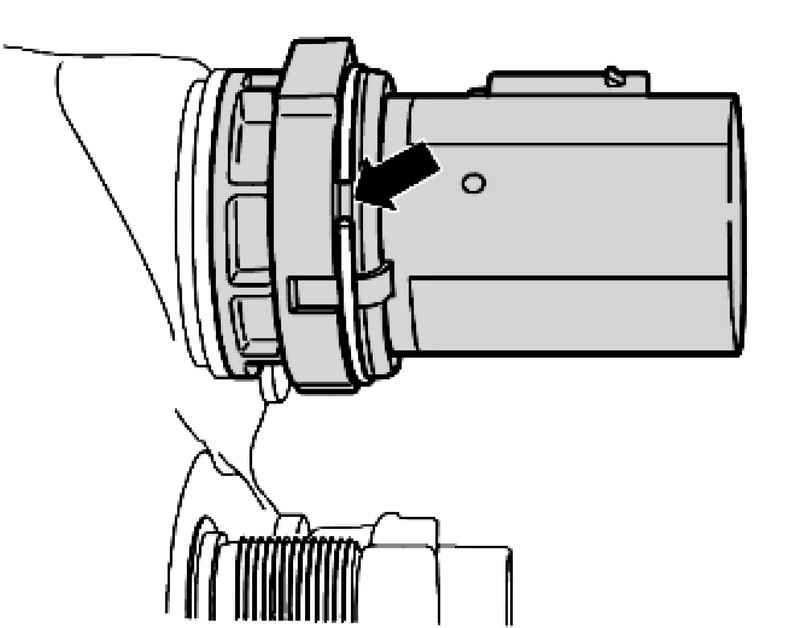

Tension Ring
Fig. 6.10. Tension Ring


Remove the snap ring out of the groove and membrane potentiometer stroke of the brake booster (Fig. 6.10).

Setting
Installation is carried out in reverse order.
