Removing and installing brake servo pressure sensor G294



Withdrawal
Remove the liner plenum chamber.

Connector

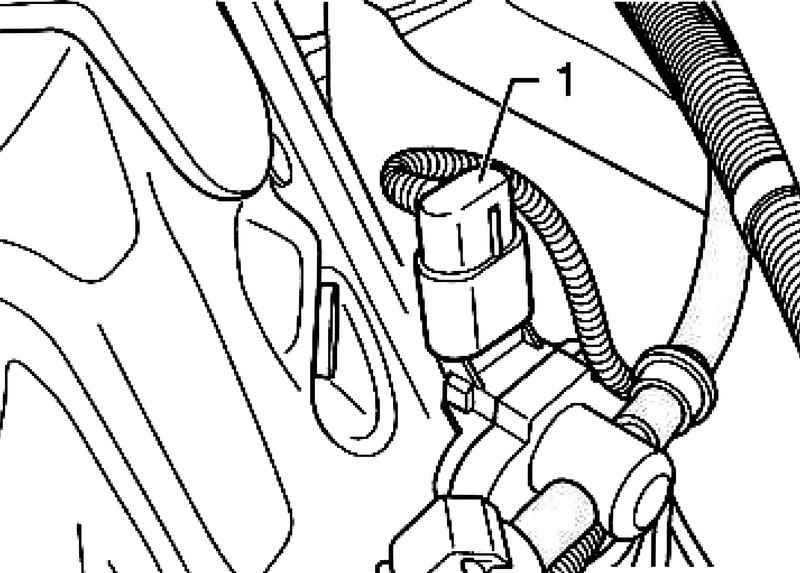

Fig. 6.14. Connector


Disconnect 1 (Fig. 6.14).

Removing the sensor

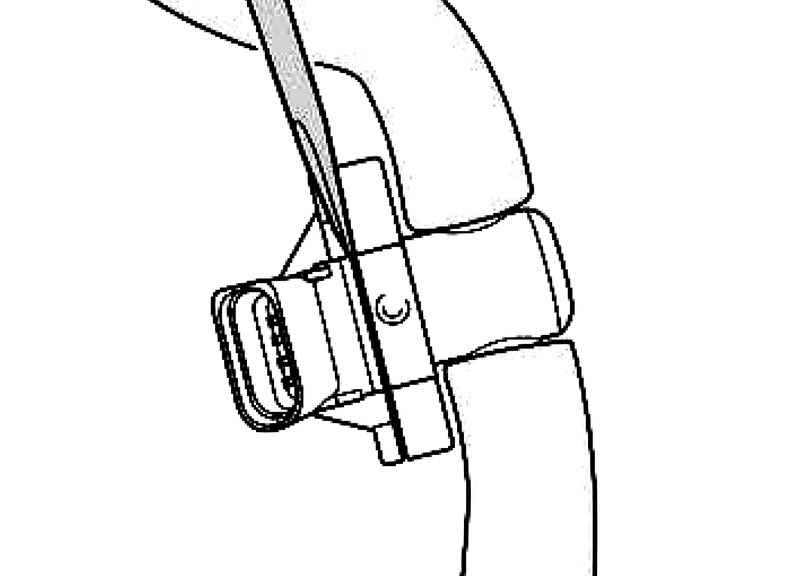

Fig. 6.15. Removing the sensor


Carefully pry downward pressure sensor G294 brake booster and remove it (Fig. 6.15).

Setting
Installation is carried out in reverse order.
