Circuit breakers
Replacing fuses According to the table, set the fuse, in which the mounting block and under what number is defective fuse.
NOTE Circuits protected by fuses. It will be several different car spare fuses. |
Turn off the ignition and idle electrical appliance. Remove the cover from the mounting block. Tweezers, remove the fuse from the mounting block. If the fuse (seen in the molten bridge), replace it with a new fuse of the same current (the same color and with the same label), and the same size.
NOTE If the new fuse after a short time, too, is blown, check the electrical appliance in a specialized workshop. If you put a fuse, designed for higher current may cause failures in other circuits. |
Colour coding of fuses

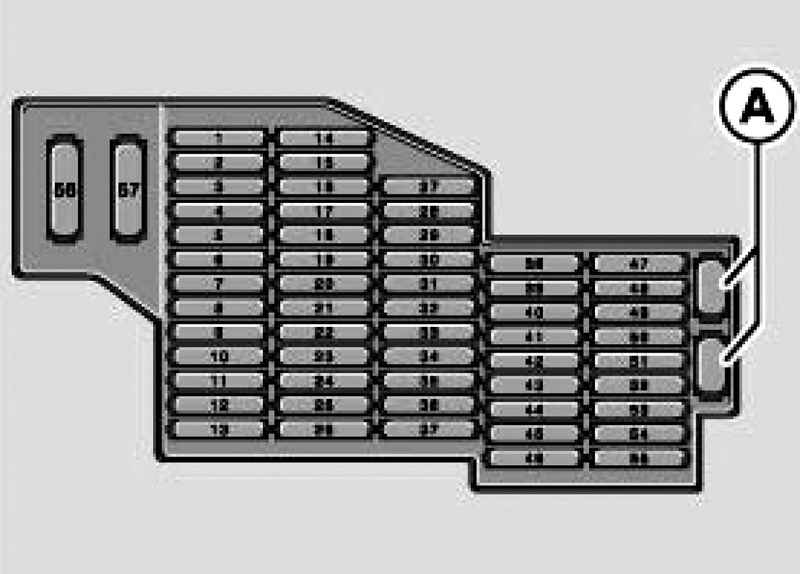

Mounting the unit in the dash panel on the left Mounting block under the hood. Mounting block is closed.

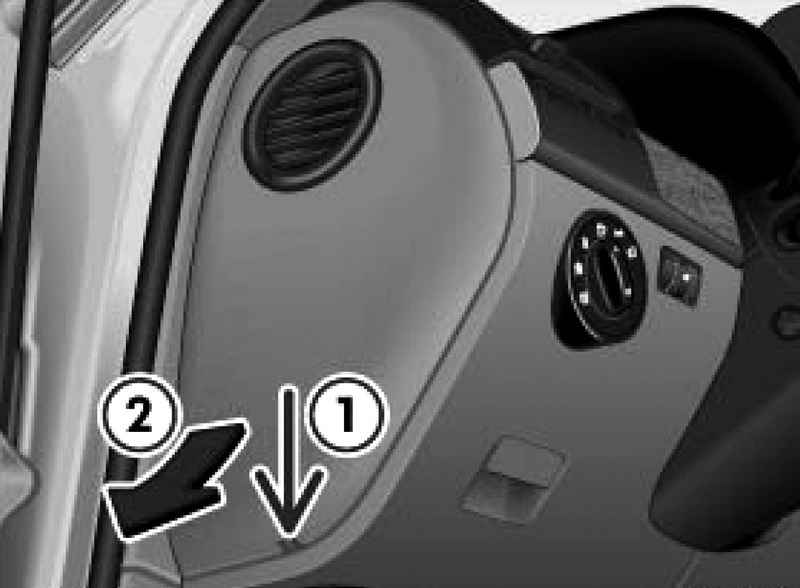

To remove the lid - insert the flat end of a screwdriver into the hole in the cover 1 (Fig. 1.147). Remove the cover in the direction of the arrow 2. The casing is placed a plastic tweezers for removing the fuse.

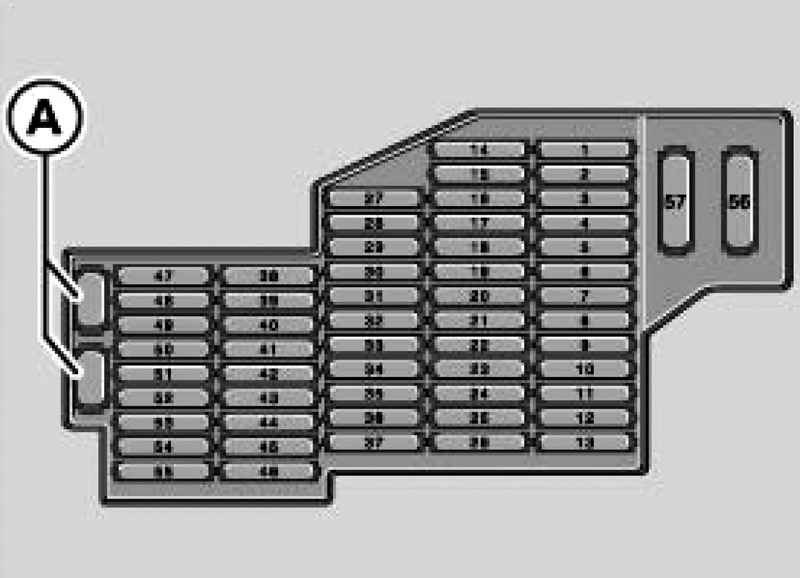

Mounting block in front of the right side Mounting block is closed.

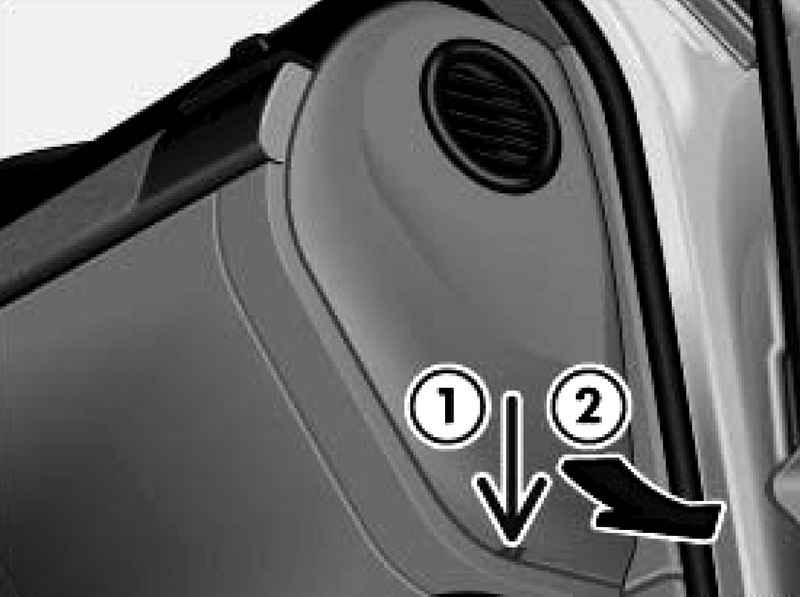

To remove the lid - insert the flat end of a screwdriver into the hole in the cover 1 (Fig. 1.149). Remove the cover in the direction of the arrow 2. The casing is placed a plastic tweezers for removing the fuse.
|
