Ashtrays and cigarette lighter



Opening and closing the front ashtray
To open the cover, slide the ashtray (front center console) forward.
To close the cover several podozhmite forward. The lid itself closes.

Emptying ashtrays

Inserting and defiksator open ashtray

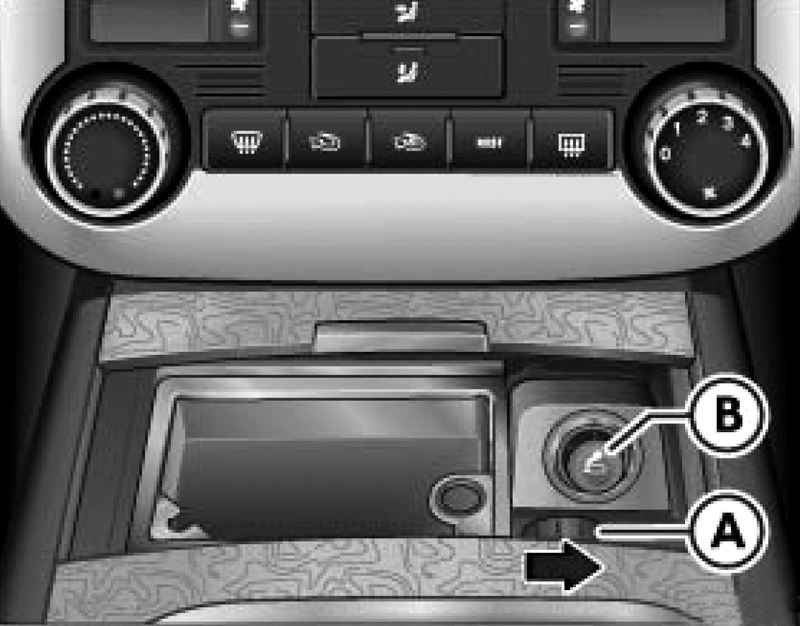

Fig. 1.65. Inserting and defiksator open ashtray


Slide the grooved plate A (Fig. 1.65) to the right.
Lift the box up the ashtray and empty it.

Using the cigarette lighter
Press the button in the cigarette lighter inside.
Wait until the button has not filed earlier.
Remove the cigarette lighter and light a cigarette on the heated up red spiral.

Opening the rear ashtrays

Place rear ashtrays

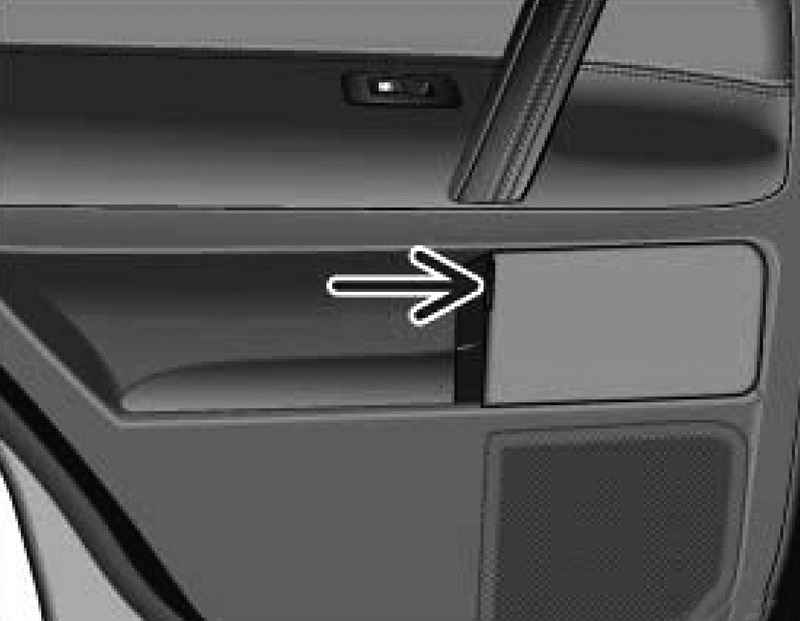

Fig. 1.66. Place rear ashtrays


Press (Fig. 1.66).
Instead ashtrays can be storage compartments.
Behind the center console is a socket.

ATTENTION
The lighter is also operable with the ignition off and remove the key from the ignition. Therefore never leave children unattended in the car.

Sockets
Each 12-volt power outlet can be connected to the electricity consumer.
Each 12-volt power outlets in the front and rear of the center console, as well as a 12-volt outlet in the cargo area can be connected electrical appliances. The power of each energy consumer may not exceed 120 watts.

NOTE
With the engine off and plugged in appliances discharged battery.

First aid kit
Special holder for first-aid kit is located on the left side in the luggage compartment under the lid.

Removing the Cover
Open the rear door.

Left luggage

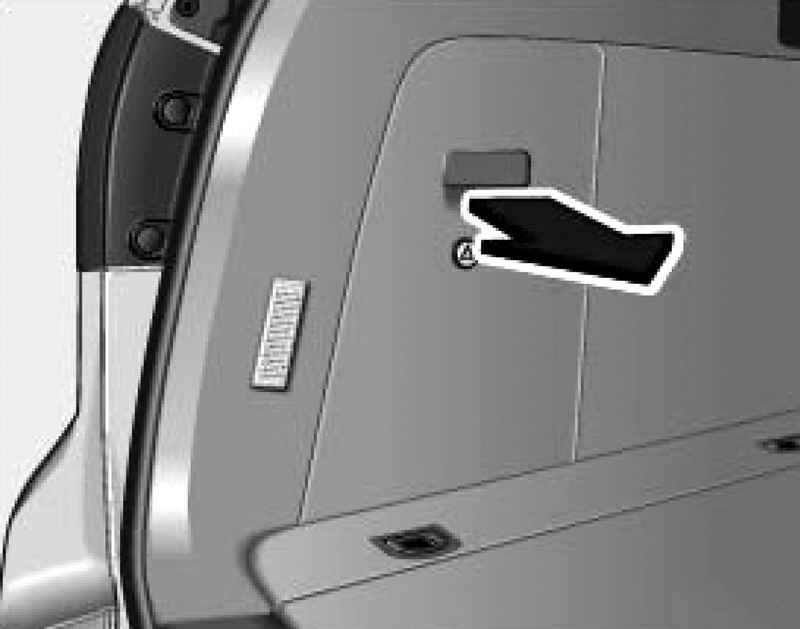

Fig. 1.67. Left luggage: Holder for warning triangle and first aid kit under the hood


Pull the left side cover in the direction of the arrow (Fig. 1.67).

NOTE
First-aid kit must meet the relevant requirements.
Follow the shelf life of drugs in the medicine cabinet. After the expiration date as soon as possible to purchase a new first-aid kit, suitable in shape and size to the holder.
