Mirrors



Interior mirror
For safety, it is important to have good visibility through the rear window.
Interior mirror when the ignition is automatically protivoslepyaschee position of the light flux from behind. While translating the selector of an automatic transmission to R mirror returns to its normal position.
Exterior mirrors

Knob for adjustment of the exterior mirrors

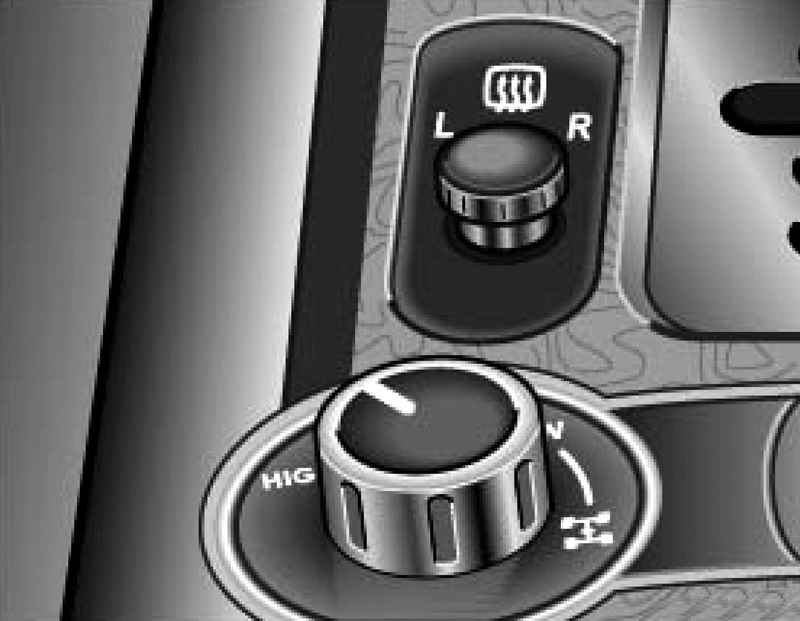

Fig. 1.48. Knob for adjustment of the exterior mirrors


Adjusting the exterior mirrors is carried out by means of rotary knob on the center console (Fig. 1.48).

Adjusting outside mirrors
Turn the knob to position L (left door mirror).
Tilt the button to adjust the position of a mirror, which provides good visibility behind. If the main menu ?�Komfort-Setup?� including simultaneous adjustment of the mirrors will be adjusted at the same time the position of the right mirror.
Turn the knob to position R (right door mirror).
Tilt the button to adjust the position of a mirror, which provides good visibility behind.

Heated exterior mirrors
Turn the knob to position for heated exterior mirrors.

Memory for exterior mirrors (forward)
Cars with memory for driver's seat also have a "memory" for the exterior mirrors. The set position of the exterior mirrors in the position memory driver's seat is also entered in the memory.

Memory for the right exterior mirror (backward movement)
When the reversing right mirror automatically takes on the adjusted position in finding the button in position R. This is the adjusted position is entered into the memory in memorizing the position of the driver's seat.
Due to this state of the mirror, it is possible to see the parking curbs on the right. When you turn off the reverse mirror returns to its original position.

ATTENTION
Convex mirrors (aspherical) increase the field of view. However, these objects are represented less in the future. When using such mirrors to determine the distance to the rear of the car when maneuvering.
If possible, use the inside mirror to determine the distance to the car behind.

NOTE
Failure of the electric exterior mirrors can be set by pressing the mirrors on the mirror bezel.
If the mirror were installed, as defined herein, individually, if necessary, you can adjust the position of the mirrors at the same time (simultaneously).
