The rear center armrest



In the back of the middle seat is recline armrest with storage compartment for small items.

The glovebox
The glovebox can be supplied chilled air.

On the passenger side

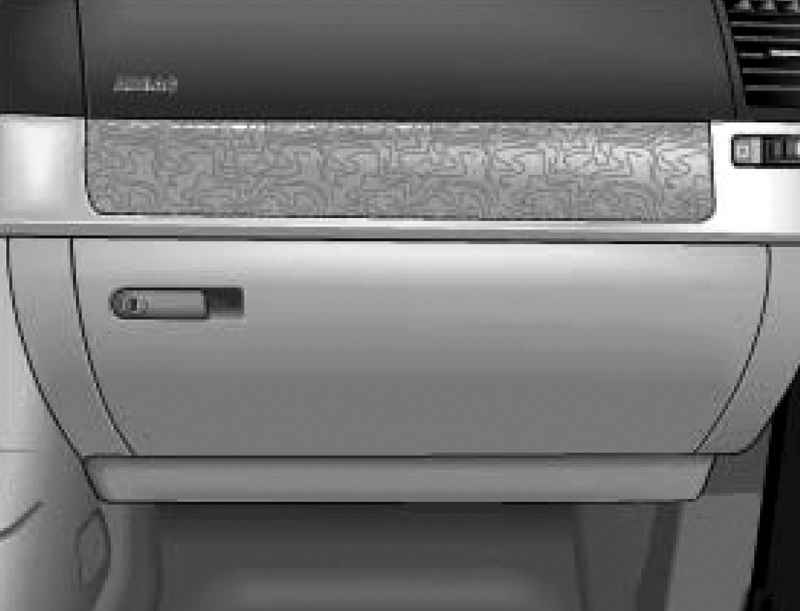

Fig. 1.56. On the side of the front passenger glove box


The box can be opened by pulling the handle (Fig. 1.56). The box is locked when the lock slot in a horizontal position.

Compartment for in-flight magazine
The logbook must always be in the glove compartment. Depending on the vehicle for the logbook can be a special compartment, which can be folded down by pulling the latch A.

Cooling glove box

Compartment A logbook and the nozzle air supply

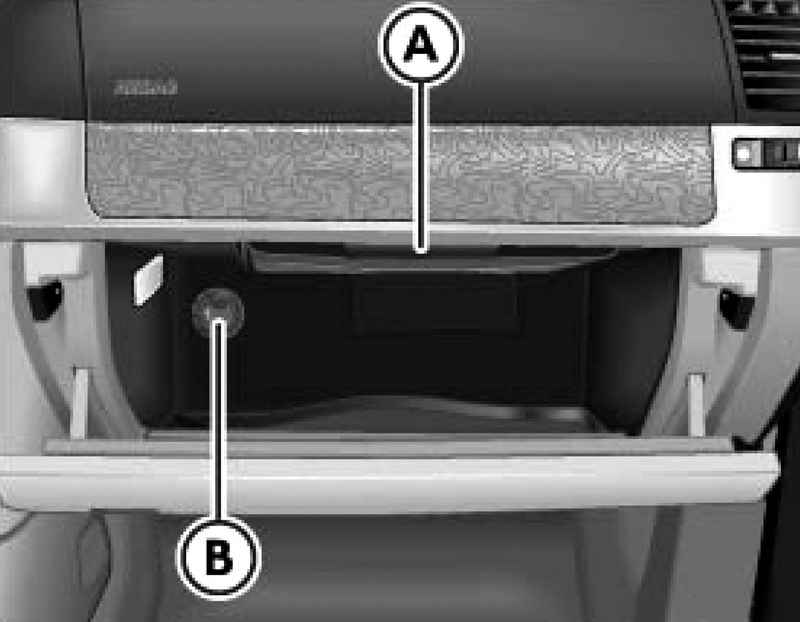

Fig. 1.57. Compartment A logbook and the nozzle air supply


Left rear wall located in the nozzle through which, when enabled, climate control can be provided in the glove box, cooled air (Fig. 1.57).
Turn the nozzle can be opened or closed.

Storage compartment in the middle of the front panel
Depending on the vehicle, this compartment is opened or closed with a lid.

Storage compartments with the lid closed

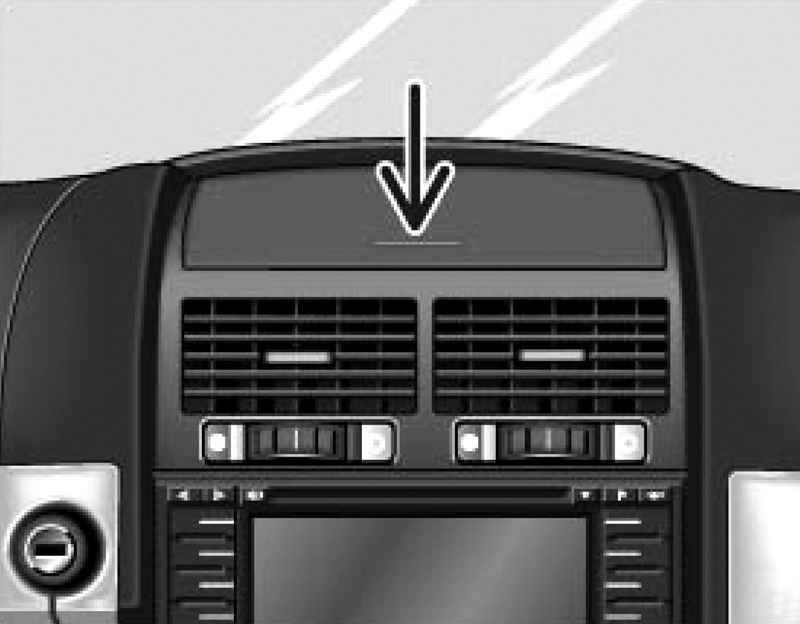

Fig. 1.58. Storage compartments with the lid closed


To open the lid, press on it (Fig. 1.58). The lid opens.
To close podozhmite cover down to lock it.

ATTENTION
Do not place any objects into the bay, which may be affected by high temperatures, such as audio tapes or chocolate.

Drawer under the right front seat

Drawer

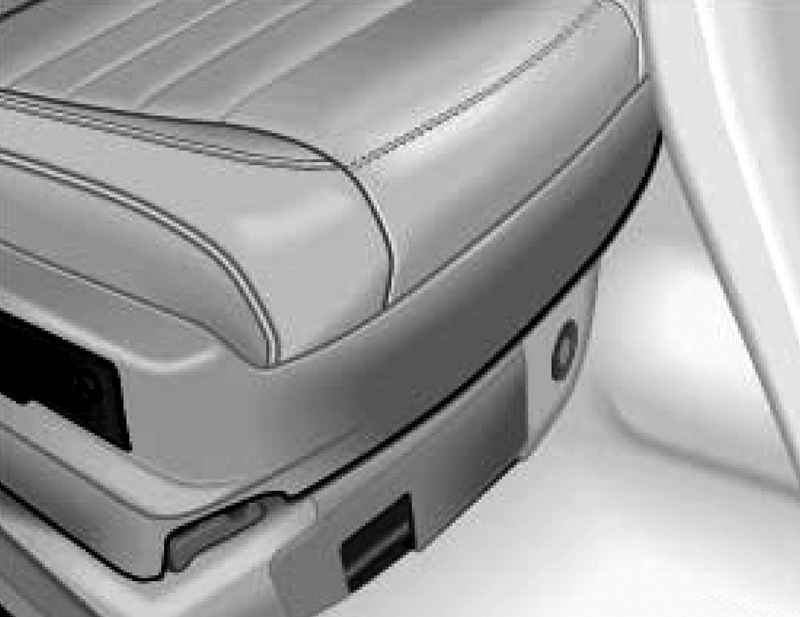

Fig. 1.59. Drawer


This box is pushed forward (Fig. 1.59).

Additional space for things

Box items

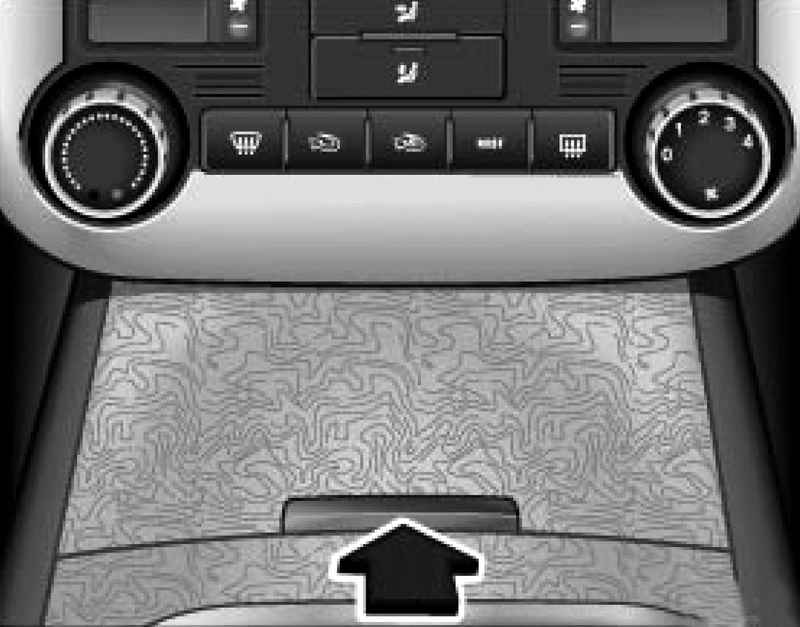

Fig. 1.60. Box items


Additional space for small items are, inter alia, in the door trim and center console (Fig. 1.60). Instead, the box in the center console and in the casing of the rear doors can be ashtray. Coat hooks are located on top of the side trim.

Storage compartments in the rear door trim

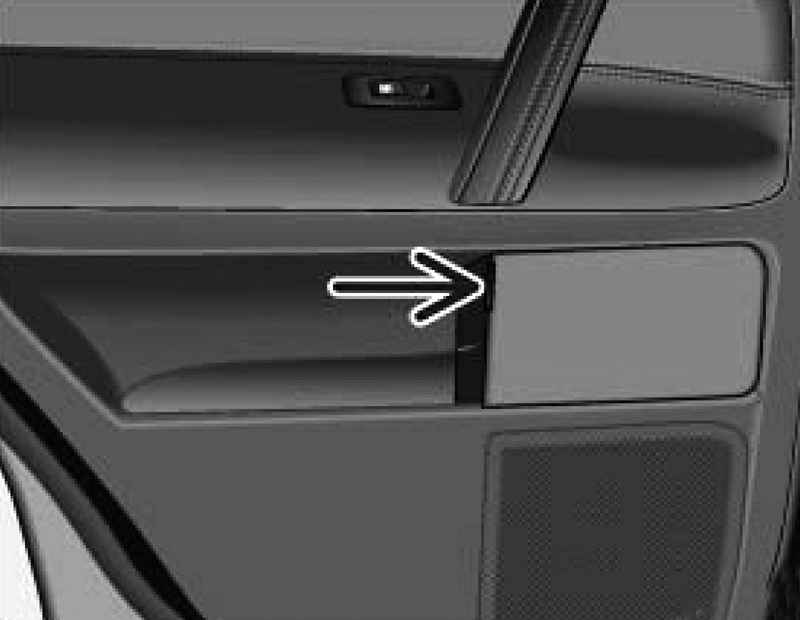

Fig. 1.61. Storage compartments in the rear door trim




ATTENTION
Do not place any objects on the front panel. Objects in motion (acceleration, braking and cornering) can fall down and distract you from driving.
Make sure that while driving, nothing can get to the center console or from somewhere else under the driver's feet. If necessary to avoid collision or quickly make a maneuver, you will not be able to brake urgently, sharply pull the clutch or add gas - risk of accident!
Hanging garments should not restrict the visibility of the driver. Hooks are only intended for light garments. Do not hang the hard, sharp or heavy objects on the coat hooks. During emergency braking or an accident, especially with the opening of airbags, these items may cause injury.
