Net



Net prevents items from the luggage compartment in the cabin.

Pulling the net partition

Net

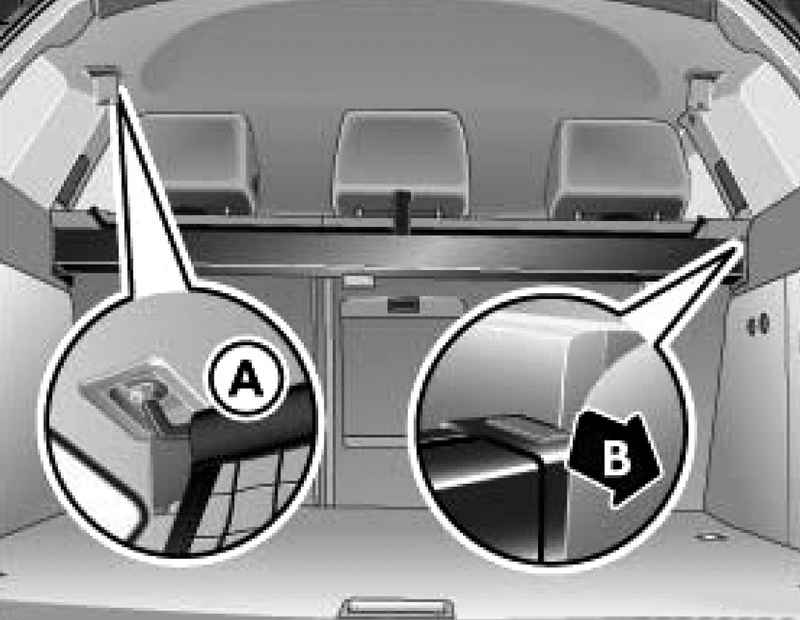

Fig. 1.69. Net


Open cover A on the ceiling (fig. 1.69) (also on the right side), under which the socket for fixing the dividing grid.
Pull up the net.
Hang the net from the left side of A. Make sure that the suspension was drawn from the top down position.
Hang the net from the right side.
Gently pull the net to make sure it is secure.

Clotting of the separation grid
Unhook the mesh on both sides.
Taps mesh bottom.

Removing the luggage net
Fold the net.
Slide the release lever in the direction of the arrow AB and lift it to the right side.

Fitting the luggage net
Insert the first grid on the left side, then to the right until it was fixed.

Using the net partition in the rear seat folded down
Fold both sides of the rear seat backrest.
Open the right rear door.

Net can be inserted into the rear seatback

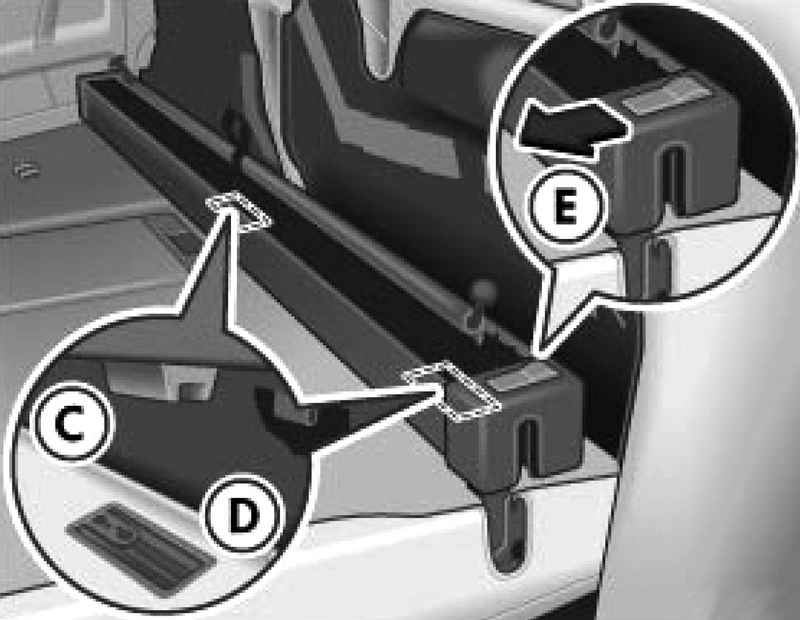

Fig. 1.70. Net can be inserted into the rear seatback


Set the net so that both constipation C (Fig. 1.70) included in the fixing device D. The mesh should be securely fixed.
Pull the net.
To remove a grid rewind, lock E slide in the direction of the arrow and pull the net to the right side of the car.
