Electrohatch



Opening and closing electrohatch
Ignition roof control is carried out by means of a rotary switch.
Closing electrohatch

The rotary control switch electrohatch

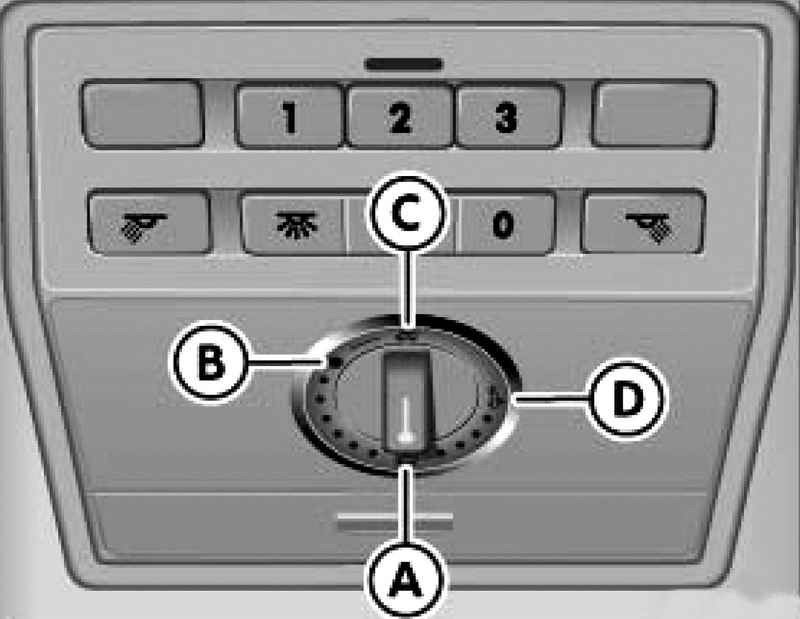

Fig. 1.40. The rotary control switch electrohatch


Turn the switch to position A (Fig. 1.40).
Sliding hatch panel
Turn the switch to position B. Panel hatch opens to a certain, a comfortable position in which the aerodynamic noise is minimal.
To further open the door, turn the switch to the On position and hold it in this position for as long as the board does not take the desired position.

Raising panel moonroof
Turn the switch to position D.
Always close the hatch completely when you park a car or leave it unattended.
After turning off the ignition, you can still ten minutes to open or close electrohatch, if at that time was not open either one of the front doors.

Sunglasses panels
Sunglasses panels opens the hatch with the panel. It can be moved and closed the hatch.

ATTENTION
Careless handling electrohatch can lead to injury.
Be careful when closing the hatch. Otherwise, injury is possible to apply yourself and others! Always check first whether you can safely close the hatch.
Always take the key with you when leaving the car.
Do not leave unattended if children and disabled people in the car, especially when left in the ignition key. Mischief key may lead to that the engine is started or enabled any electrical appliance, such as windows, - risk of injury! The doors of the car radio remote control can be locked, making it difficult, if necessary, assistance.
Power moonroof operates as long as the key removed from the ignition or was not open either one of the front doors.

Overload electrohatch
Power sunroof panel is provided with overload protection, which prevents the pressing plate anything to the roof. Overload protection, however, is not completely eliminates the possibility of pressing fingers. If anything interferes with the closing of the panel, she stops and comes back.
This Back in the open position of the panel can be closed, if the rotary switch is in position A (Fig. 1.40) to hold the tilted backwards until the door is fully closed. It should be borne in mind that the panel is closed now without overload protection.
If the panel can not even close, mozhnozakryt manually.
Programmable remote control
Through the memory buttons on the ceiling, you can, for example, program the remote control to open the garage door.

Memory buttons remote control

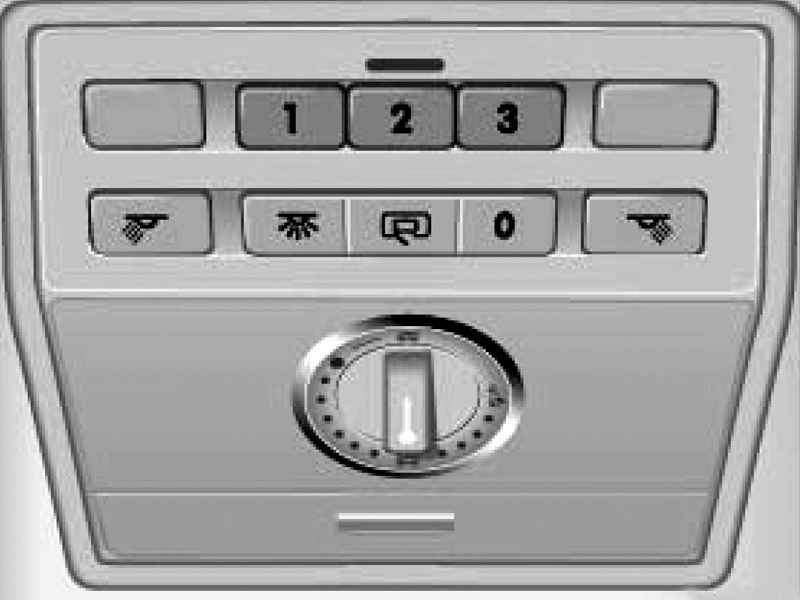

Fig. 1.41. Memory buttons remote control


Through keys 1, 2 and 3 (Fig. 1.41) you can program the remote control to perform certain functions, such as control of the entrance gate, garage doors, lighting area.

Programming
Press 1 and 3 and hold them down until the LED flashes until above the key 2, and then release the keys.
Install the remote control key, for example, the garage door, at a distance of about 5 cm in front of the keys.
Press the desired key simultaneously with the remote control key button 1, 2 or 3.
Hold down both keys until then, until the LED flashes slowly at first, then quickly.

Reprogramming a single key memory
Press 1, 2 or 3.
Install the remote control key, for example, the garage door, at a distance of about 5 cm in front of the keys.
Press the right button of your remote control key simultaneously with the keys 1, 2 or 3.
Hold down both keys until then, until the LED flashes slowly at first, then quickly.

Using the memory keys
Press 1, 2 or 3 to activate the equipment.

Erasing all programs Remote Control
Press 1 and 3 and hold them down until the until the LED flashes quickly, then release the keys.

ATTENTION
Be careful when using remote control. For example, when you close the garage door, make sure that the area where the door is empty, otherwise there may be a serious injury.
