The central armrest with two drawers for small items



The central armrest with opening the top drawer; Recline in the cover holder for canned drinks

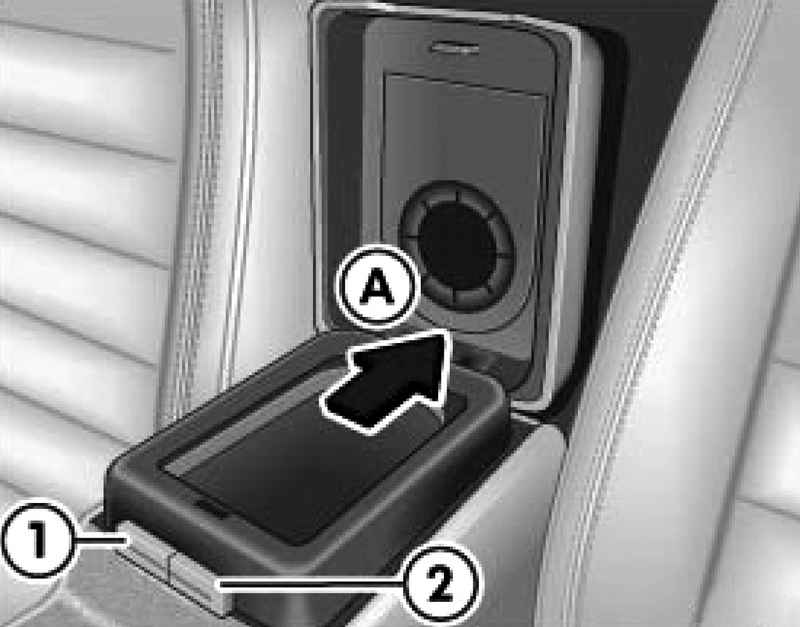

Fig. 1.55. The central armrest with opening the top drawer; Recline in the cover holder for canned drinks


The armrest can be moved forward or backward (Fig. 1.55).

Opening the top drawer
Press 1.
Fold the cover up.
To tilt the drink holder retighten it in the direction of the arrow A.

Open the bottom drawer
Slide the armrest back and, if necessary, close the top drawer.
Press 2.
Fold the cover up.

Sliding armrest
Close the armrest.
Press and hold the 2 key, slide the armrest. The armrest has five fixed positions.

ATTENTION
Keep the arm during movement is always closed to prevent injury during emergency braking or in a collision.
Do not place hot drinks in the holder. If the back accidentally driven on an open arm, a hot drink may spill - risk of scalding.
