The rear center console



Open the glove box

Box of things, control and heated seats socket

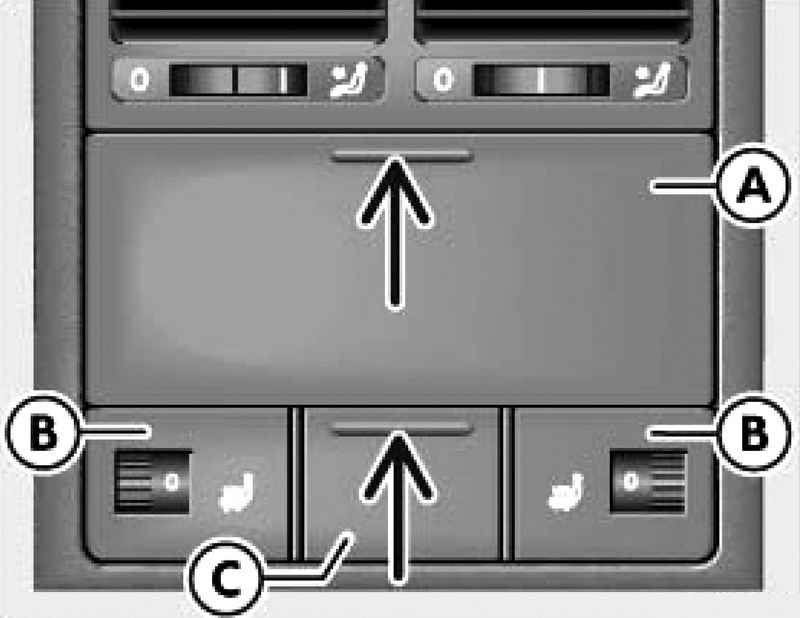

Fig. 1.62. Box of things, control and heated seats socket


Click the cover A (Fig. 1.62). The lid opens.

Seat heating
Turn the appropriate switch controller B. In the initial position 0 seat heating is switched off.

Access to the rear socket
Click the cover C. Hook will yield a few out.
Take the socket all the way down.
Controls on the back of the center console are not available on all versions of the car.
Seat heating works only when the ignition. Left switch controller for the left seat, right - to the right.

ATTENTION
To avoid damaging the heating elements in the seat, do not get your knees on the seat and loaded with cushions and backrests of concentrated load.

Drink holder
The center console has two cup holder (Fig. 1.62).

Drink holder

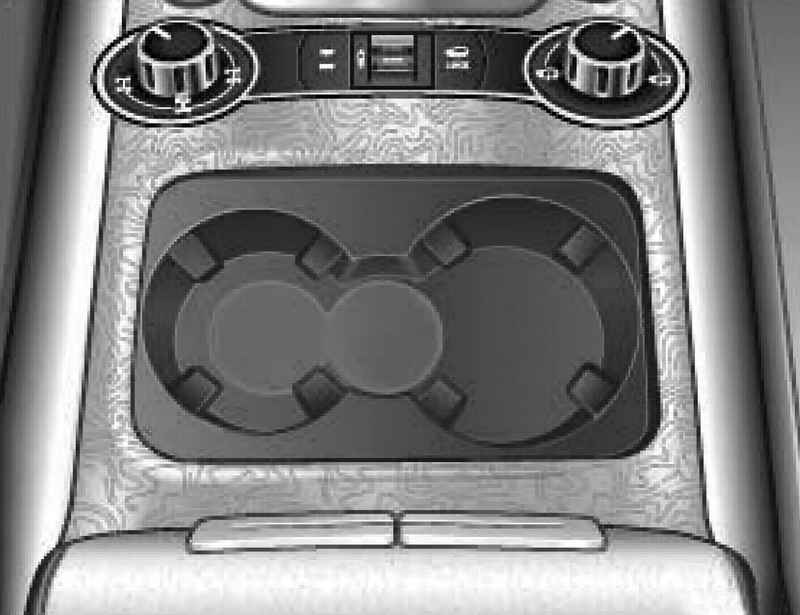

Fig. 1.63. Drink holder




ATTENTION
Do not place hot drinks in the holder. When maneuvering the vehicle under heavy braking or in a collision drinks can be splashed.

CD-changer

Cover, for which there is a CD-changer

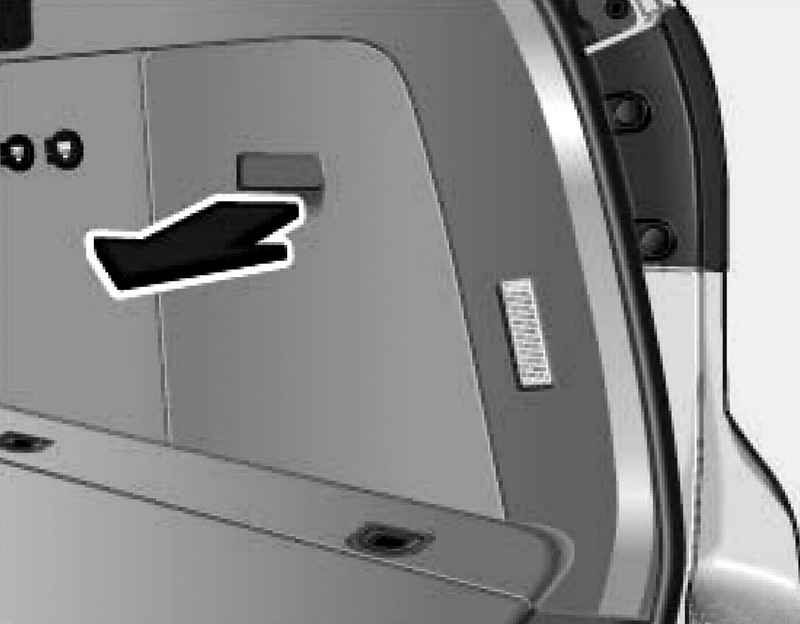

Fig. 1.64. Cover, for which there is a CD-changer


CD-changer located on the right in the luggage compartment (Fig. 1.64).
