Podrulevoj dimmer switch and turn indicators



This switch also includes a parking lighting and light signal.

Turning direction indicators

Podrulevoj dimmer switch and turn indicators

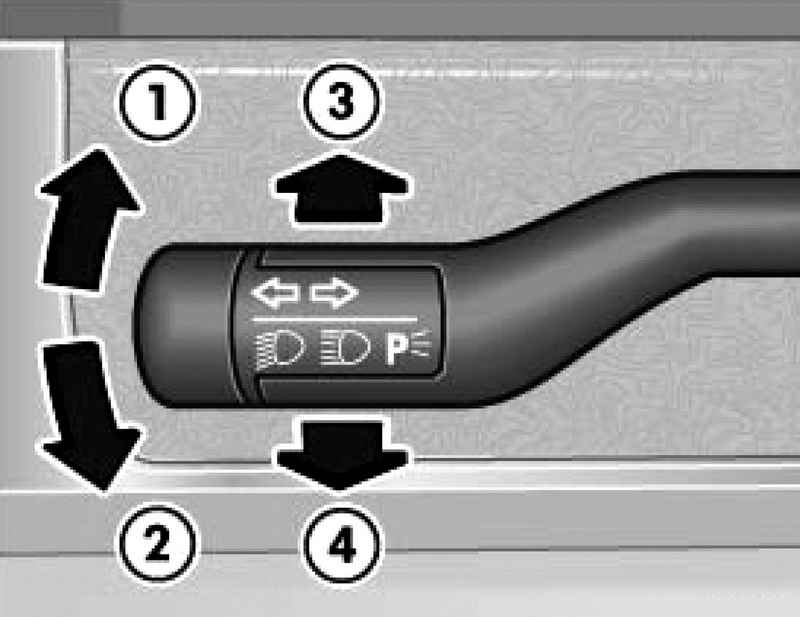

Fig. 1.44. Podrulevoj dimmer switch and turn indicators


Retighten the lever all the way up 1 (Fig. 1.44) for the inclusion of indexes of the right turn and down 2 to activate the left turn indicator.

Enable light signal before changing lanes
Slide the lever only to the point of counter up or down. The turn signal will flash, as long as you hold the lever, but at least three times.

On and off beam
Turn the switch to position .
Retighten the lever forward to turn on the 3-beam.
To turn off the high beam, pull the lever.

Inclusion of a light signal
Pull the lever on the steering wheel 4 to turn on the light signal.

Turning parking lights
Turn off the ignition and remove the key from the ignition.
Podozhmite stalk switch up or down, depending on which side you want to turn on parking lights.

NOTE
The turn signals work only when the ignition. At the same time the corresponding indicator lamp flashes in the instrument panel. The indicator lamp flashes when the turn signals when connected to a car trailer. When one of the indicator lamps out of order, flashing warning lamp twice as fast. If the fault indicator bulb on the trailer, the control lamp It does not function. Replace the lamp.

The main beam is switched on only when the switch outdoor lighting at the position of head light. The instrument panel warning light .
The light signal is valid until the stalk switch is held, and also when not on outdoor lighting. The instrument panel warning light .
When the parking light shine the headlights and taillights on the appropriate side of the vehicle. Parking coverage applies only when the ignition is switched off. When the parking lights and open the driver's door buzzer sounds.
If the direction indicators remove the key from the ignition, a warning signal sounds when the driver's door open. It reminds you to turn off the blinkers, if you do not want to leave the parking lights.
