Removing and installing control unit, tire pressure monitoring J502



The control unit of the tire pressure monitoring J502 is installed in the hinge foot parking brake.

Withdrawal
Remove the cover in the footwell on the driver's side.

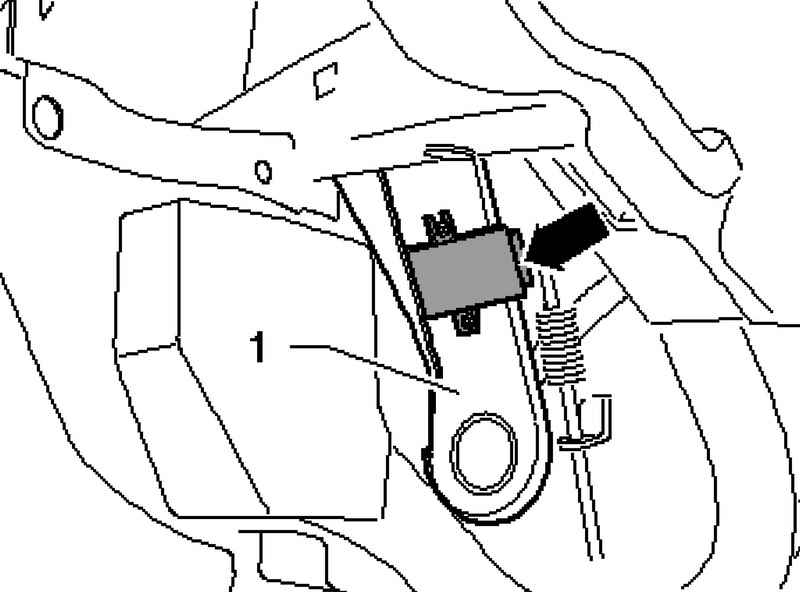

Removing the control system, tire pressure monitoring J502
Fig. 4.37. Removing the control system, tire pressure monitoring J502


Disconnect plug connection and remove control unit, tire pressure monitoring J502 with support bracket foot parking brake 1 (Fig. 4.37).

Setting
Install in reverse order, with the following should be considered.
Fix the control unit with new rivets with a notch in the hinge foot parking brake.
Perform programming and calibration of the control unit
