Touareg 2003 model year



General provisions
Volkswagen cars are designed according to the latest safety standards. To ensure reliability, use only the recommended spare parts Volkswagen. They are distinguished by the trademark VW Audi and part number. For these parts ensures reliability, security and availability.
On other products you can not say this despite the fact that in individual cases, it has a TUV certificate and a special permit and is constantly monitoring the market.

ATTENTION
Production of original spare parts Volkswagen and original accessories Votex may differ from each other in terms of installation, torque and so forth.
Be sure to observe The appropriate instructions for installation and operation.

The following combinations of wheels and tires, as well as retrofitting relate solely to the original disc Volkswagen. Admission wheels or aftermarket wheels on retrofitting is not possible using the supplied permission to complete.

ATTENTION
When installing the drives manufactured by Votex original accessories installation conditions and tightening torques may differ from those listed for the drive Volkswagen Genuine Parts.
Therefore, be sure to comply with tightening torques wheel bolts, as well as appropriate instructions for installation and operation.

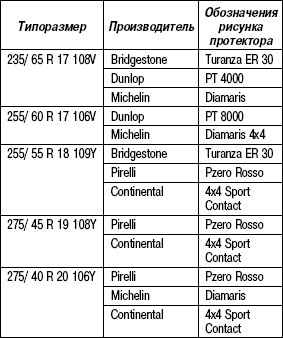

Summer tires for Touareg 2003 model year

All-season tires for the Touareg 2003 model year

Winter tires Touareg 2003 model year
XL means ?�Extra Load (high-capacity)"

Tires for off-road Touareg 2003 model year
