The components of the control system and clearance fitting locations
NOTE For model year 2004 control unit regulation clearance 7L6 907 553 A / B (200 Hz) was replaced by a system control unit regulation clearance 7L0 907 553 F / * (800 Hz). |

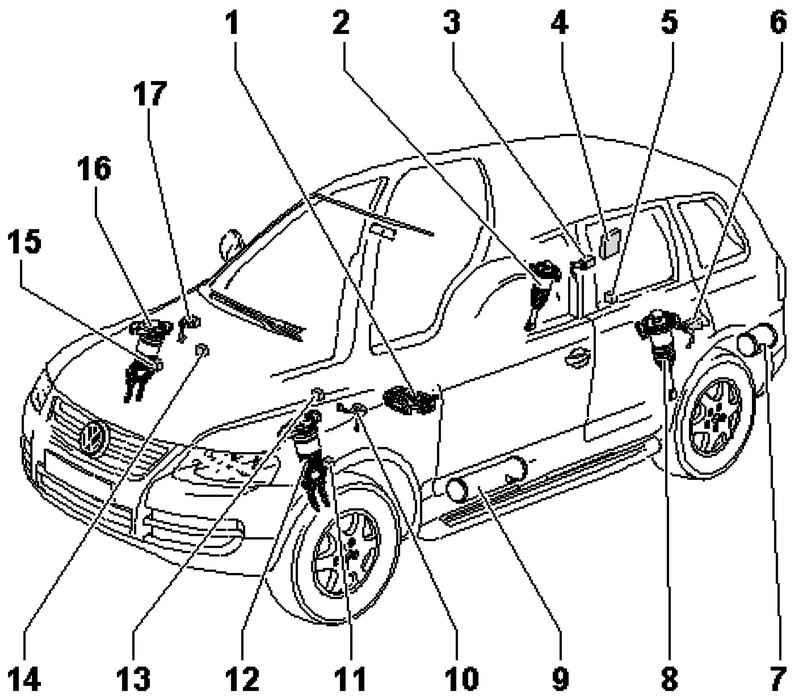

| Fig. 4.39. The components of the control system of clearance and where they are: 1 - compressor unit solenoid valves; 2 - right rear pneumatic resilient element; 3 - Rear right level sensor body; 4 - the block of management control clearance; 5 - rear body acceleration sensor; 6 - Rear left level sensor body; 7 - Rear accumulator; 8 - Pneumatic elastic element back left; 9 - Front accumulator; 10 - Front left level sensor body; 11 - acceleration sensor front left wheel; 12 - Pneumatic elastic element front left; 13 - Body acceleration sensor front left; 14 - Body acceleration sensor, front right; 15 - Wheel acceleration sensor, front right; 16 - Pneumatic elastic element front right; 17 - front right level sensor body
|
By using the new control unit eliminated the need for wheel acceleration sensors and level sensors are adapted stand. If, instead of the control unit (200 Hz) is set to block (800 Hz), you must also replace the level sensor body. Acceleration sensors wheels remain on the vehicle for the "sealing" of the pipeline.
|
