Adjusting the back door

To properly adjust the door, loosen the hinge of the door at the front. Other measures, such as lift-up doors, are ineffective. On the subsequent load again door gives way.

For this purpose use the key to adjust the door with the attachment 3320 3320/2.

If necessary, unscrew the top door hinge at the front in the inside, you can use the nozzle adapter 3320/1.

To do this, remove the B-pillar trim and door sills.

When installing a new cladding door frame mounted units not affected.

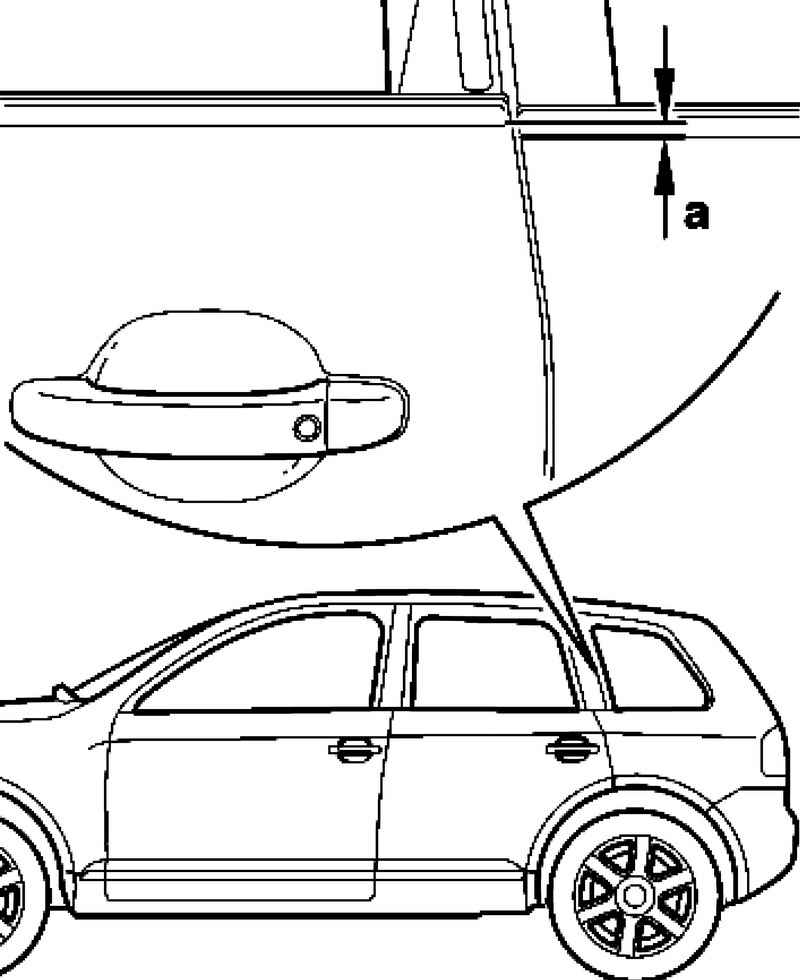

The rear edge of the door cladding is set higher by about 1 mm relative to the rear door, the size of a (Fig. 8.40).

After installing the door frame mounted units lowered to 1 mm.
