Adjusting the door



For proper adjustment, loosen the door hinge of the door at the front. Other measures, such as lift-up doors, are ineffective. On the subsequent load again door gives way.
For this purpose use the key to adjust the door of 3320 with a nozzle for 3320 3320/2.
If necessary, unscrew the top door hinge at the front and on the inside, you can use the nozzle adapter 3320 / 1. To this must be removed front panel.
When installing a new cladding door frame mounted units not affected.

Adjusting the front door

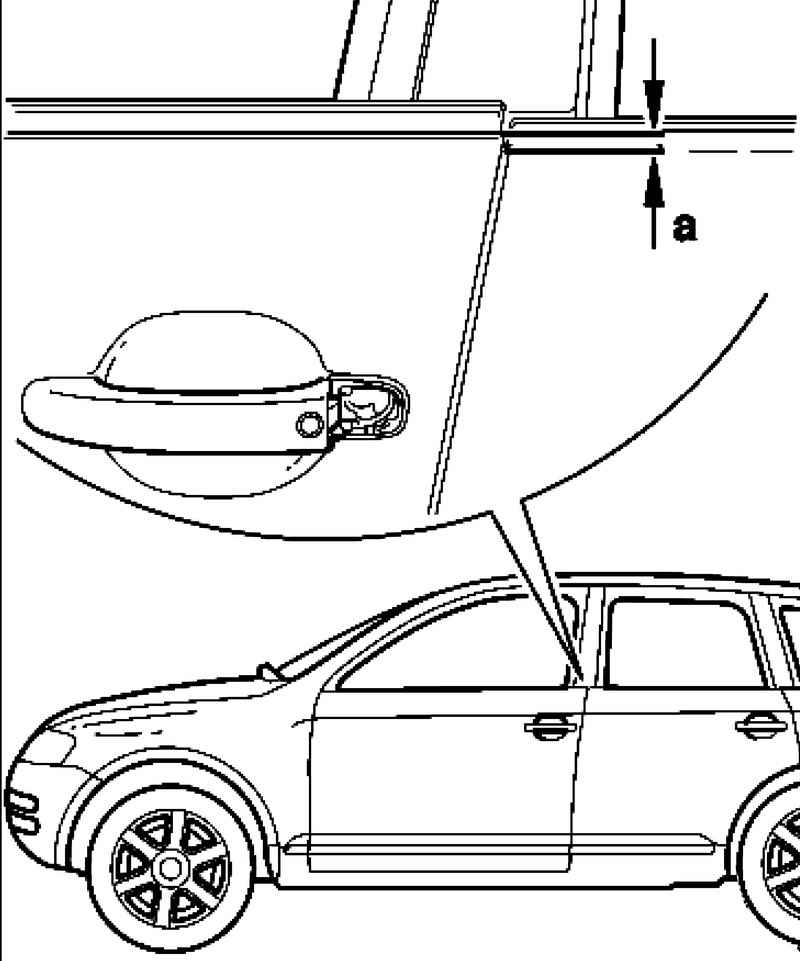

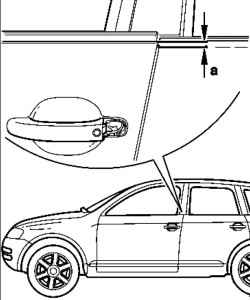

Fig. 8.25. Adjusting the front door


The rear edge of the door outer skin is set higher by about 2 mm with respect to the door, a size (Fig. 8.25).
After installing the door frame mounted units lowered onto the 2 mm.

Adjusting lock loop

Hinge the door lock

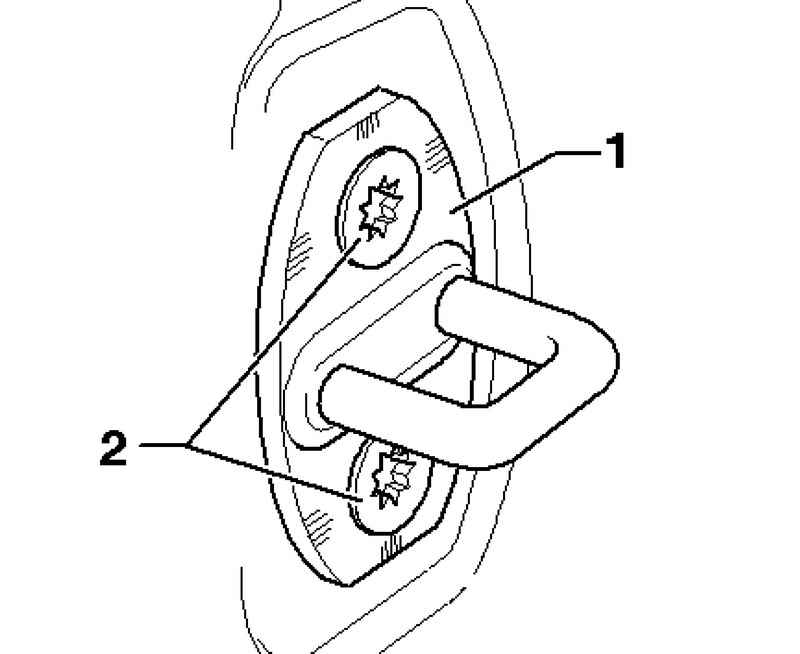

Fig. 8.26. Hinge the door lock


Loosen the lock loop 1 by loosening the screws on the rack 2 B (Fig. 8.26).

NOTE
To adjust the front doors of the car must be on the ground.
Description of adjustment is only for the right front door. Adjusting the left door is similar.
The front door must be closed completely with no extra effort and do not wobble ("play").
After the adjustment, lock the door hinges should not be pressed up or down.
Adjust the loop lock the front door if you can not stick to the back.

Adjust the front door when and fit lock loop 1 so that the front door closed dock with the back (lost in the noise of speed).
Tighten bolts lock 2 hinges 1.
The inhaling moments: Bolts (2) 20 Nm.
