Fit seal the hatch panel



Fit seal the hatch panel

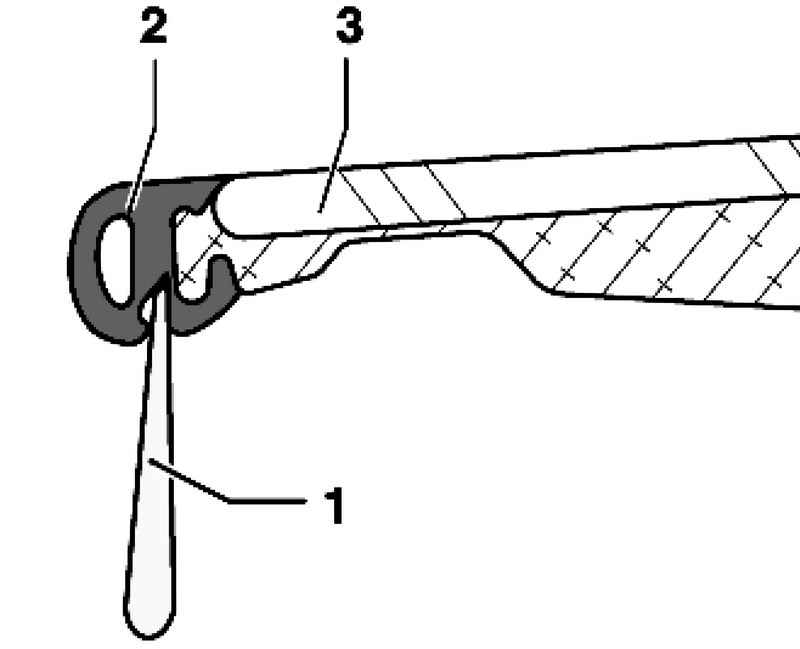

Fig. 8.49. Fit seal the hatch panel


Check by means of cardboard strips approximately 0.3 mm thick (for example a business card), whether the density is uniform between the gasket and the body panel 2 along the entire perimeter of the hatch (Fig. 8.49).
Cardboard card should be pulled between the sealing panel and the body tight.
Remove the glass panel lifting and sliding sunroof
If the fit is too small, it is possible to push the seal panel 2 by means of a wedge 1: 3409.

Pressing the seal

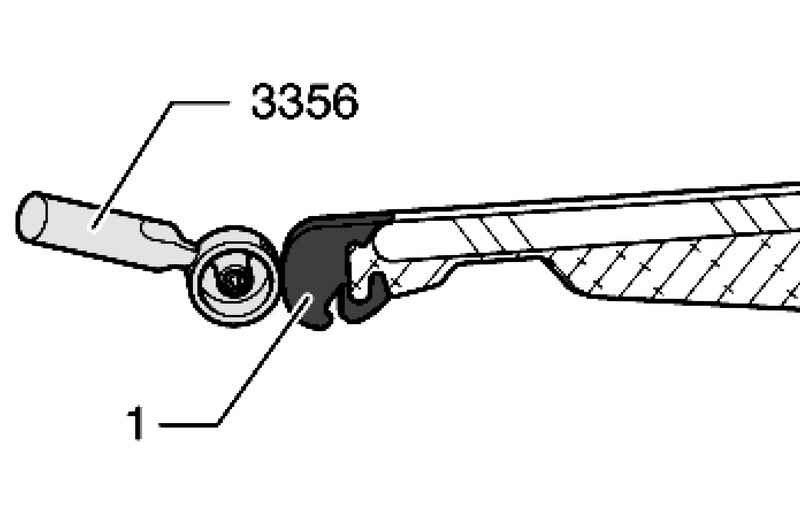

Fig. 8.50. Pressing the seal


Too tight fit to the body seal gasket press 1 with a pressure roller 3356 tightly to the panel (Fig. 8.50).
To fit the seal glass panel 3 should be removed.

Removing the fairing

Removing the fairing

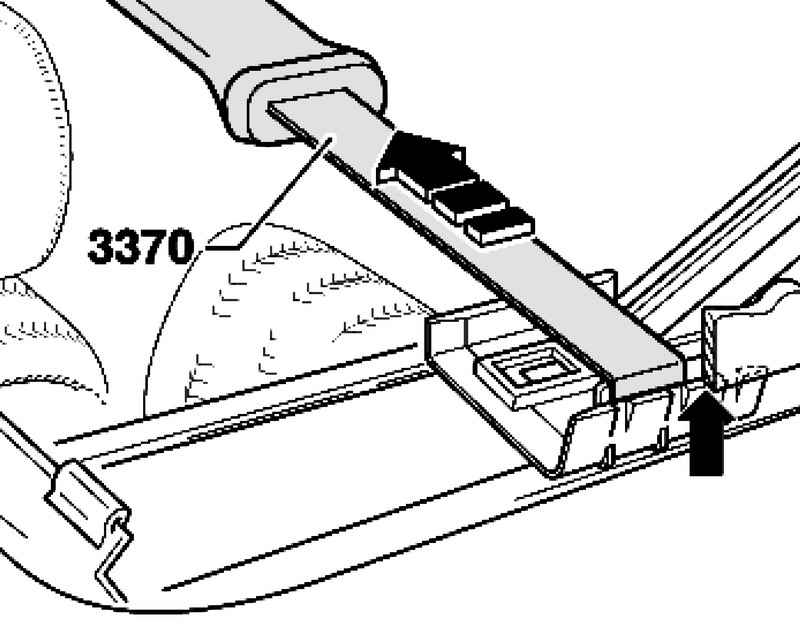

Fig. 8.51. Removing the fairing


Open lifting and sliding roof completely, insert the hook 3370 between the edge of the panel and fastening the fairing and pull the hook to release the fixation of the lateral cowl latch (left / right) (Fig. 8.51).
Pry the screwdriver attachment fairing of the guide rail (left / right).
Remove the cowl.
