Installing the timing cover



Timing cover

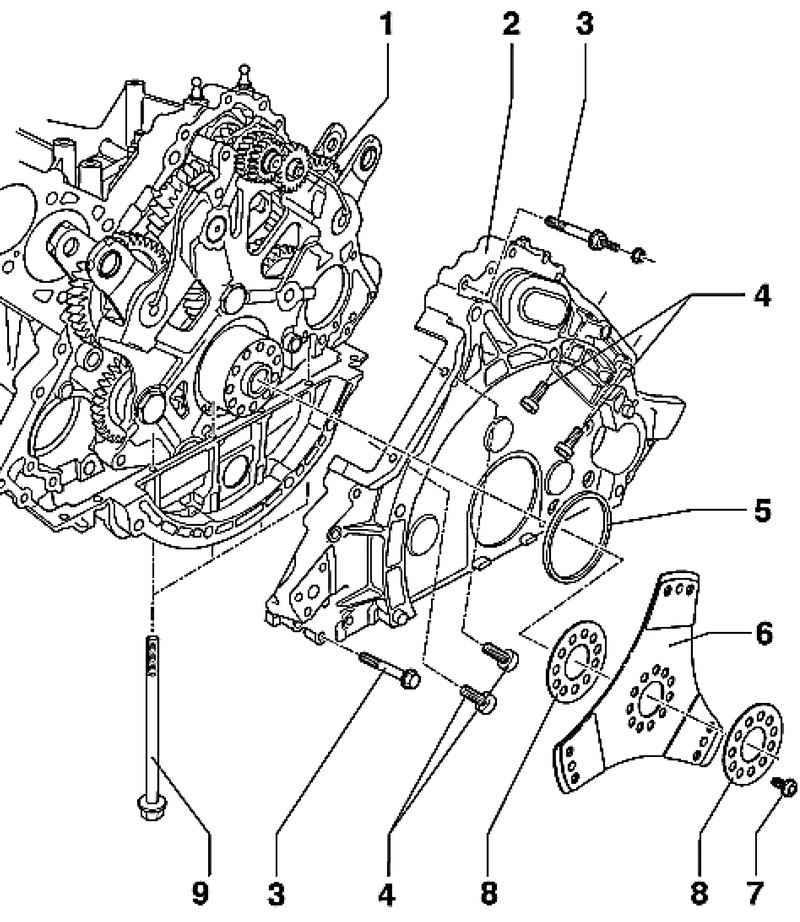

Fig. 2.182. Timing cover: 1 - unit dispensing mechanism; 2 - a cover of the distributive mechanism; 3 - a bolt 20 Nm; 4 - a bolt 20 Nm; 5 - O-ring; 6 - the clutch disc; 7 - a bolt 50 Nm + to tighten on 1/4. (90 ?�); 8 - washer; 9 - a bolt 13 Nm



Applying sealant on timing cover

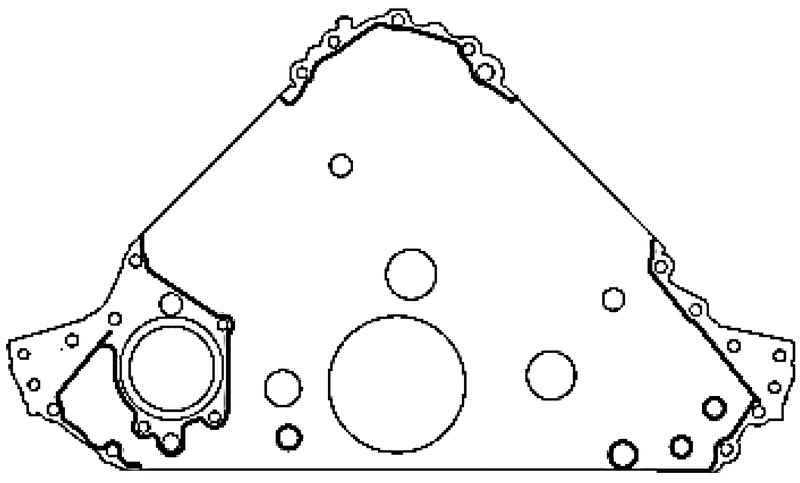

The scheme applying sealant
Fig. 2.183. The scheme applying sealant


Apply sealant to clean the seating surface timing cover (Fig. 2.183).
Observe the tightening timing cover bolts.

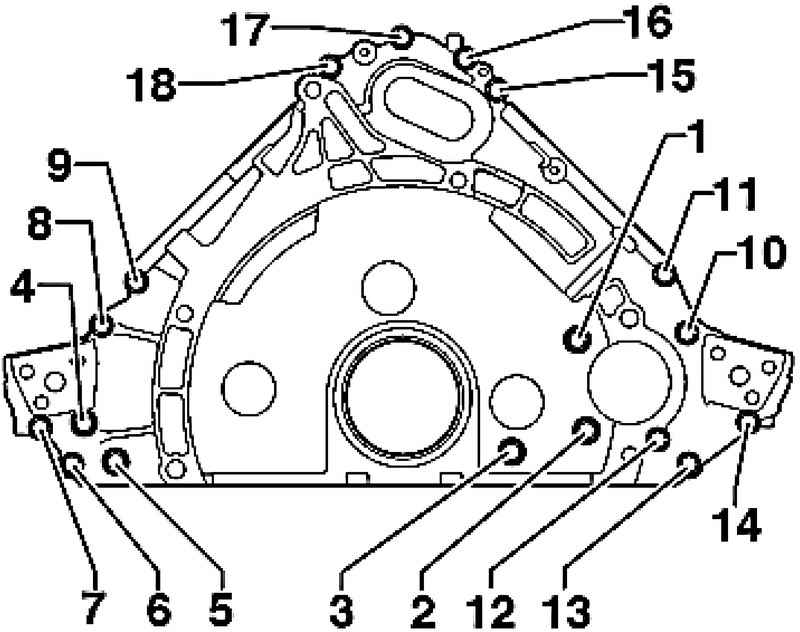

Sequence of a tightening of bolts timing cover
Fig. 2.184. Sequence of a tightening of bolts timing cover


Tighten mounting bolts in the shown sequence to 20 N ?� m (Fig. 2.184).
