Draining fluid from the torque converter



When contamination of oil ATF dust or overhaul the gearbox necessary to pump fluid from the torque converter as follows.

Draining fluid from the torque converter

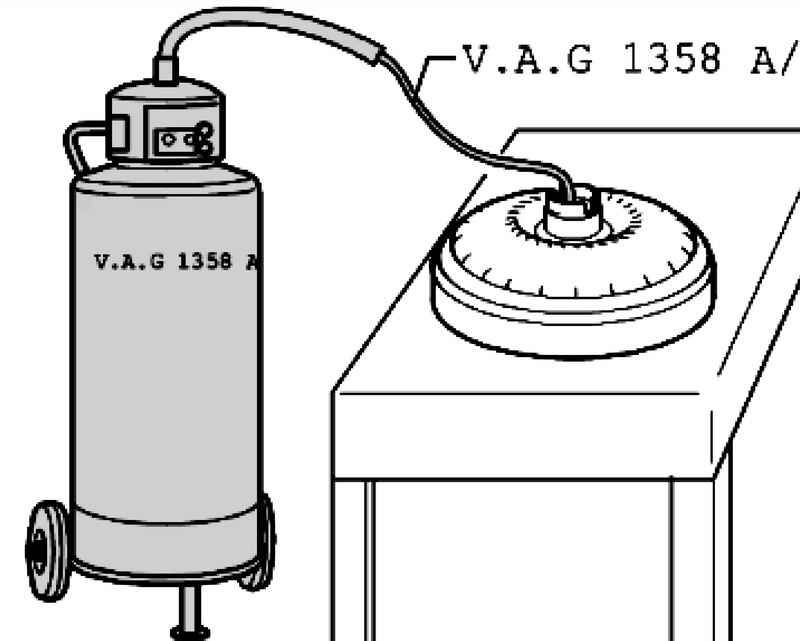

Fig. 3.5. Draining fluid from the torque converter


Pump oil ATF from torque converter with special tool for pumping oil VAG 1358 A and means for pumping oil VAG 1358 A (Fig. 3.5).
