Removing and installing selector lever lock solenoid N110



Withdrawal
Remove the drive gear.
Unlock and disconnect plug connection.

Removing the electromagnet

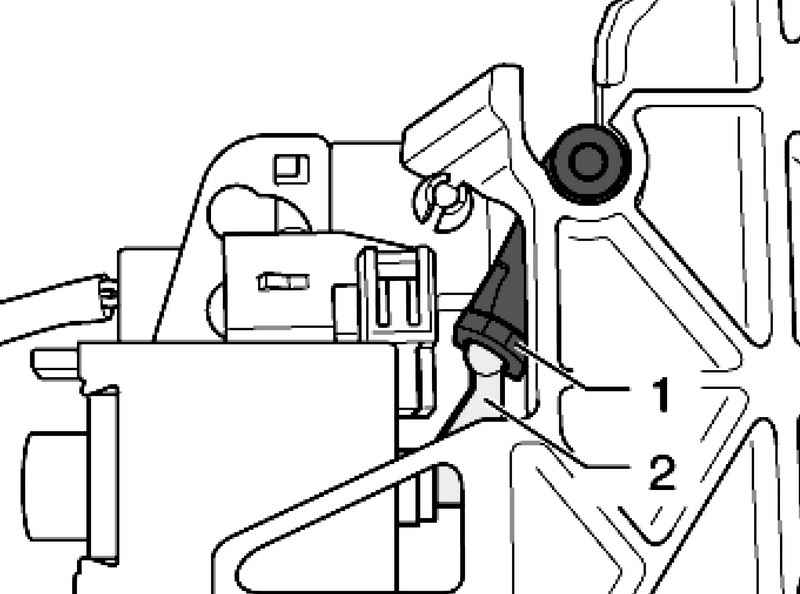

Fig. 3.20. Removing the electromagnet


Unlock the solenoid bracket in and out of the locking lever 1 and the drive gear (Fig. 3.20).

Setting
Put the lever of the electromagnet 2 vertically.
Slide the solenoid front mount the drive gear.
Connect the lever 2 with a locking lever 1 (Fig. 3.20).

Locking electromagnet

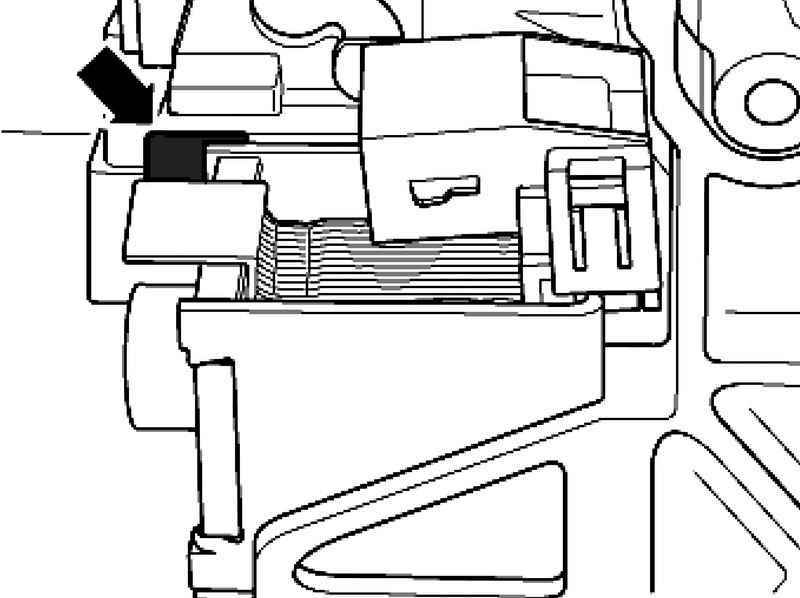

Fig. 3.21. Locking electromagnet


Slide the solenoid to lock the drive in gear until it locks in its mounting (Fig. 3.21).
Check that the solenoid is mounted in the holder and the stop lever is in engagement with the locking lever.
