Removing and installing the side cover

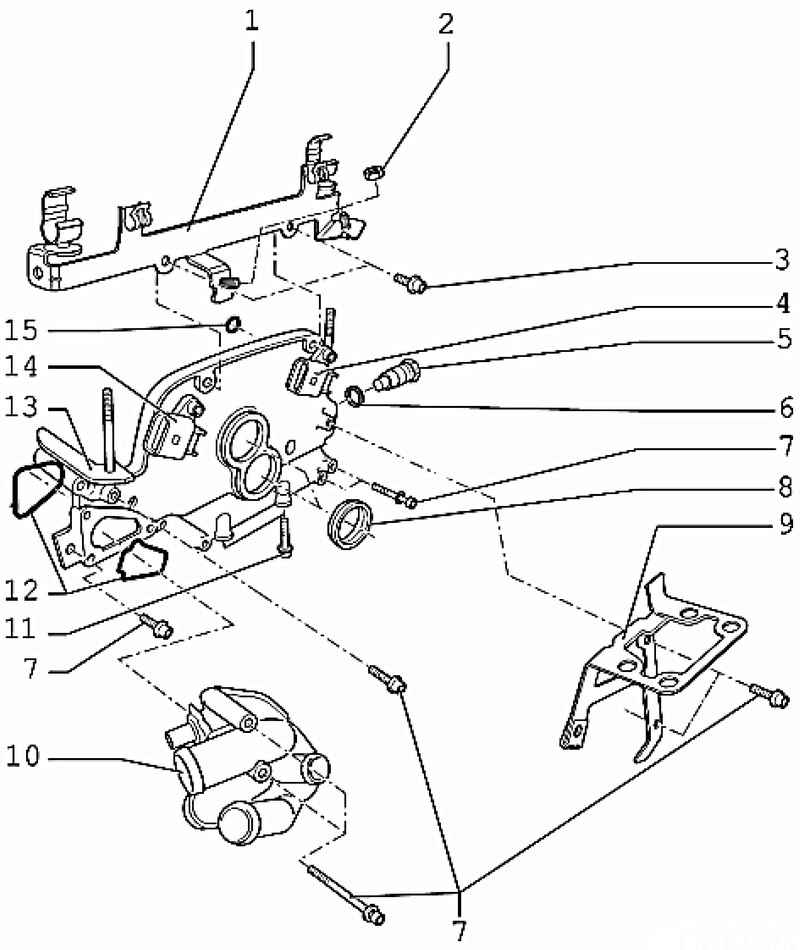

Fig. 2.54. Arrangement of the side cover: 1 - box for wiring; 2, 3 - bolts; 4 - the gauge of the Hall; 5 - chain tensioner; 6 - a sealing ring; 7 - a bolt; 8 - a sealing ring; 9 - the holder; 10 - the thermostat; 11 - a bolt; 12 - a sealing ring; 13 - side cover; 14 - Hall sensor; 15 - O-ring

Training pads for installation of the cylinder

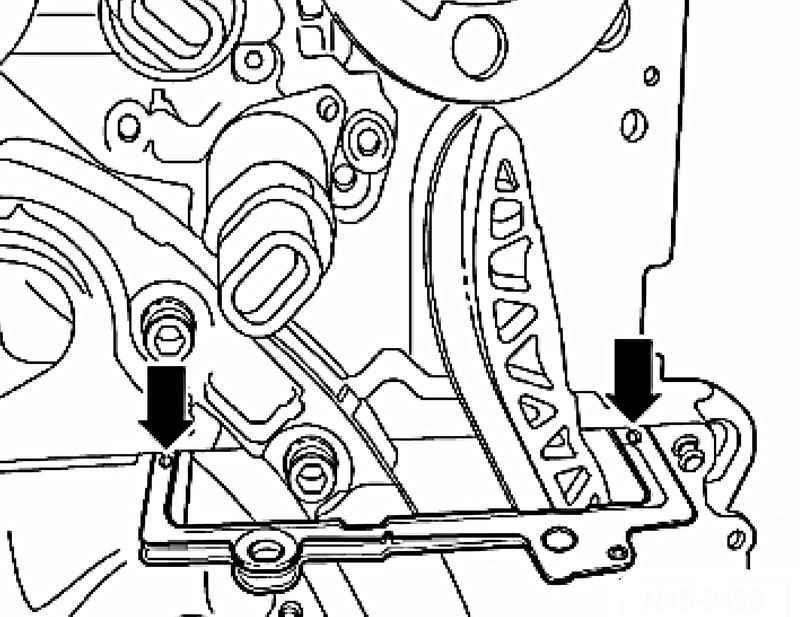

Fig. 2.55. Holes cylinder head gasket

Clean 3-mm holes in the cylinder head gasket from the remnants of the old sealant (Fig. 2.55).

Fill 3 mm holes in cylinder head gasket with sealant AMV 174 004 01 and lubricate the seating surfaces on the side of the cover and flange sealant AMV 176 501. Immediately install the side cover.

NOTE

With the cylinder head installed the holes in the cylinder head gasket are only visible half.
